KF079C-040-4L-P - Datasheet
MBA
Category Information

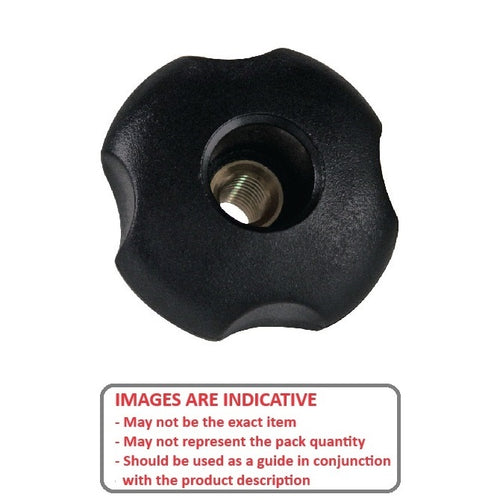

Knobs - Lobe - Four Lobe - Female - Through HoleThrough Hole Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

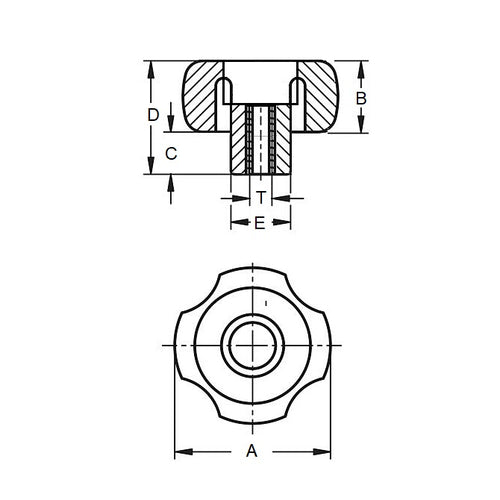

- Thread Size : 5/16-18 UNC (7.94mm)
- Head Diameter (A) 39.88 mm
- Thread Length 11.9 mm
- Colour Black
- Hub Diameter (E) 16.00 mm
- Hub Length (C) 8.89 mm
- Knob Height (D) 27.94 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® JCL-155
- JCL155
