KM079C-033-6L44-SP - Datasheet

MBA

Category Information

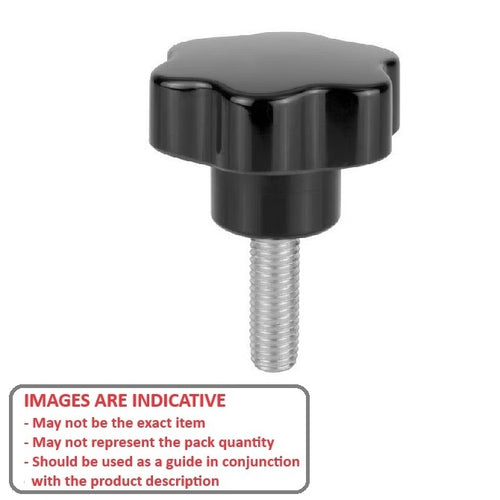

Knobs - Lobe - Six Lobe - Male

Male Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)

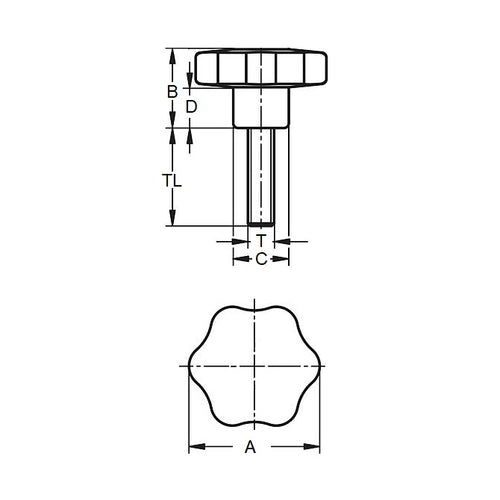

  • Head Diameter (A) 33.02 mm
    (Equiv. 1.3 in.)
  • Thread Length 44.5 mm
    (Equiv. 1.752 in.)
  • Colour Black
  • Hub Diameter (C) 13.97 mm
  • Hub Length (D) 10.92 mm
  • Knob Height (B) 22.10 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST154
  • RST-154
