KF079C-032-3L-BHST - Datasheet
MBA
Category Information

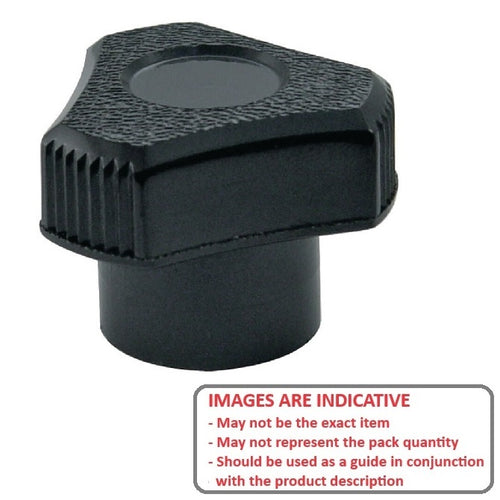

Knobs - Lobe - Three Lobe - Female - Blind Hole Solid TopBlind Hole Solid Top Female Three Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

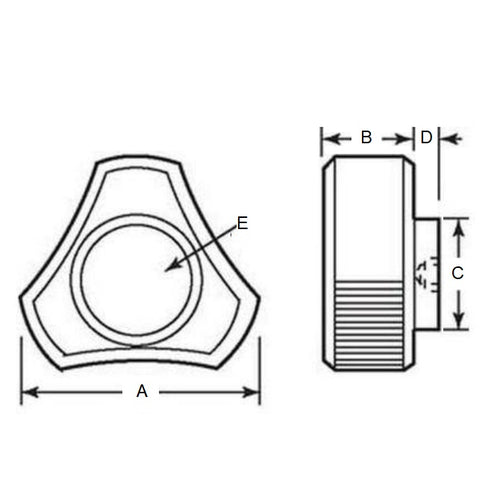

- Head Diameter (A)
31.75
mm
(Equiv. 1.25 in.) - Thread Length
9.5
mm
(Equiv. 0.374 in.) - Colour Black
- Hub Diameter (C) 19.05 mm
- Hub Length (D) 11.11 mm
- Knob Height (B) 11.11 mm
- Recess Diameter (E) 12.95 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- DK605
- DK-605
