KF079C-032-CB - Datasheet

MBA

Category Information

Knobs - Cross - Female - Blind

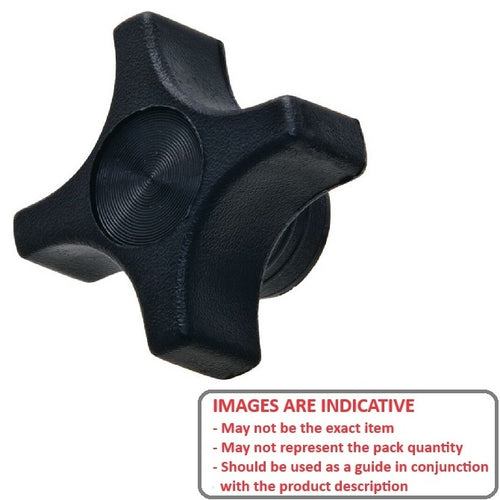

Blind Female Cross Knobs. Black Plastic Knob with a Brass insert.

  • 4 Prong cross knobs to go onto threads.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Head Diameter (A) 31.75 mm
    (Equiv. 1.25 in.)
  • Thread Length 11.1 mm
    (Equiv. 0.437 in.)
  • Colour Black
  • Hub Diameter (E) 15.88 mm
  • Hub Length (D) 9.53 mm
  • Knob Height (C) 22.23
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • DK-84
  • DK84
View full details

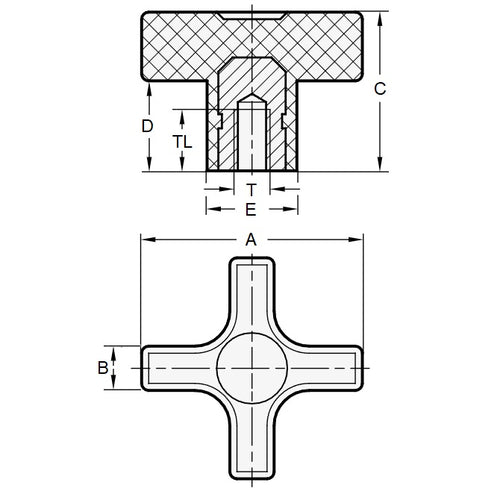

KF079C-032-CBDiagramKF079C-032-CBImage
