SC079C-064-SQ-C-CP - Datasheet
MBA
Category Information

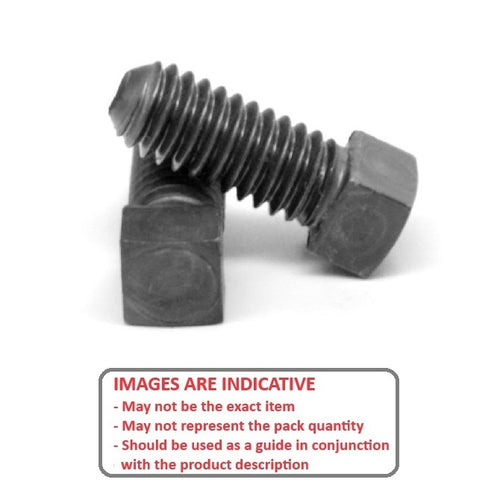

Screws - Set - Cup Point - Square HeadSquare Head Cup Point Set Screws. Grade 8 hreat treated alloy steel. All screws are threaded to the head.
Product Data

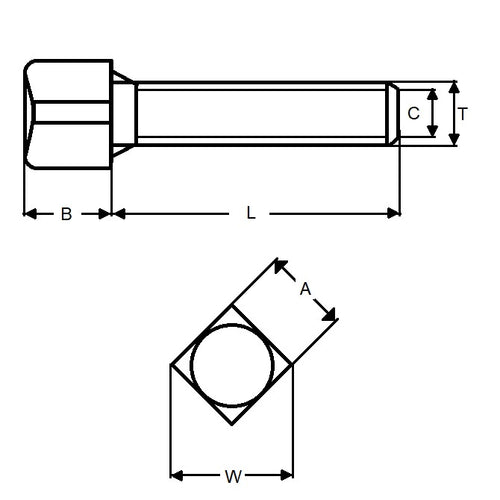

- Thread : 5/16-18 UNC (7.94mm)
- Thread Length (L)
63.500
mm
(Equiv. 2.5 in.) - Head Flats (A)
7.920
mm
(Equiv. 0.312 in.) - Head Height (B) 27.380 mm
- C 3.960 mm
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MAC-75
- MAC75
