NT079C-HH-S4 - Datasheet
Brighton Best
Category Information

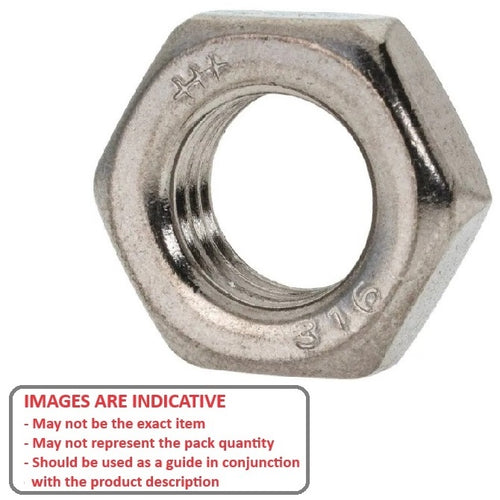

Nuts - Hexagonal - Half - Stainless SteelStainless Steel Half Hexagonal Nuts. UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.

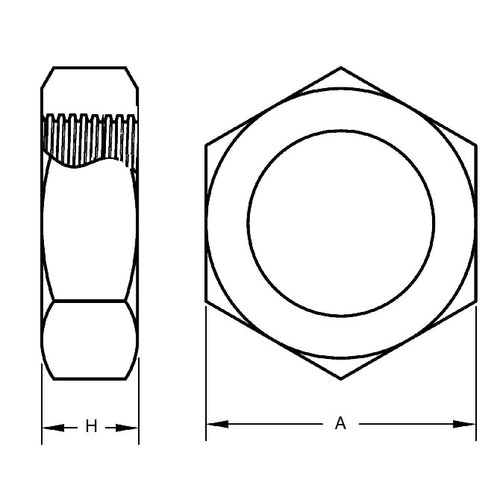

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)
- Thickness (H)
4.1
mm
(Equiv. 0.161 in.) - Across Flats (A/F)
12.7
mm
(Equiv. 0.5 in.) - Type Half Nut
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 766018
- 91847A030
