NT079C-NI-S4 - Datasheet
Brighton Best
Category Information
Nuts - Hexagonal - Nylon Insert - Stainless SteelStainless Steel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.

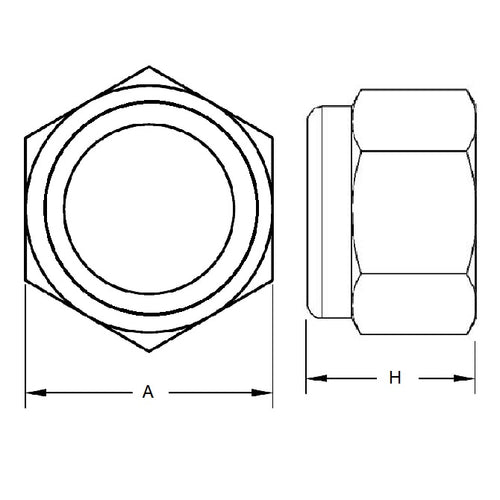

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)
- Thickness (H) 8.6 mm
- Across Flats (A/F) 12.5 mm
- 8.6
- Type Standard
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 310059
- 91831A030
- Reid Tool® ROC-4978-030
- ROC4978030
