SC079C-203-C-SK-C - Datasheet
Brighton Best
Category Information

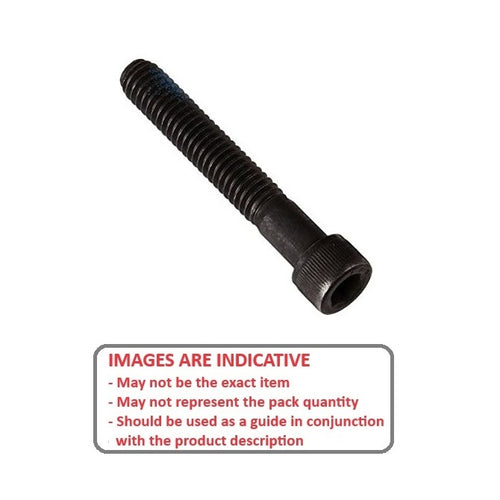

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 5/16-18 UNC (7.94mm)
- Thread Length (L)
203.2
mm
(Equiv. 8 in.) - Material High Tensile Steel / Black Oxide
- Head Length (B Max.) 7.9 mm
- Head Diameter (A Max.) 11.9 mm
- Drive Depth (E) 3.84 mm
- Shank Diameter (C) 7.78 - 7.94 mm
- Hex Key (D) 6.35 (1/4) mm
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Min thread Length 28.5 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 581441
- 91251A662
