SC079C-019-LH-SK-C - Datasheet
Brighton Best
Category Information

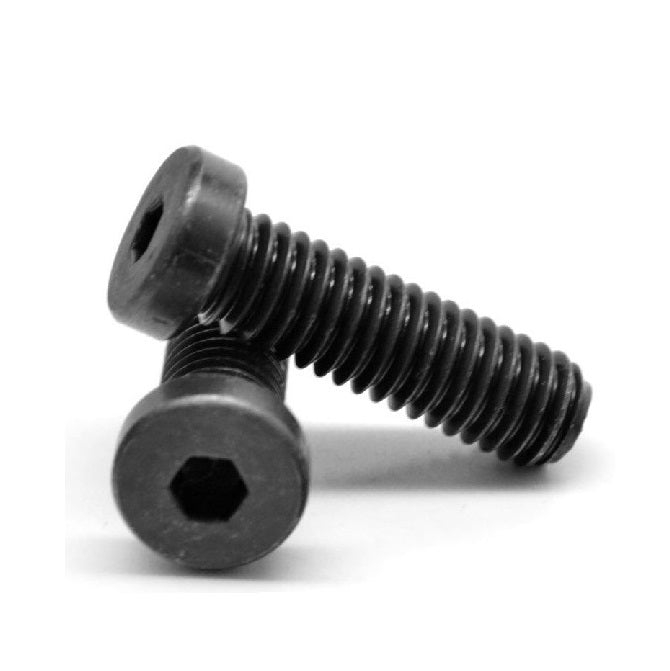

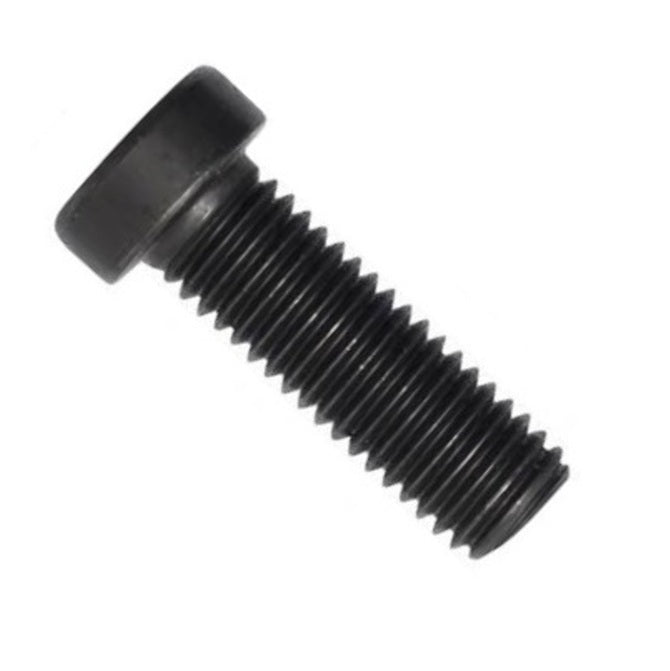

Screws - Low Head Socket - Carbon SteelCarbon Steel Low Head Socket Screws. UNC - UNF - METRIC - Alloy Steel.
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : 5/16-18 UNC (7.94mm)
- Thread Length (L)
19.1
mm
(Equiv. 0.752 in.) - Material High Tensile Steel / Black Oxide
- Head Height 3.86 - 4.01 mm
- Head Diameter 11.61 - 11.89 mm
- Usual Hex Key (D) 3.97 (5/32) (May Vary) mm
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92220A222
- BRB-019199P
- BRB019199P
- HK-68034B
- HK68034B
