SUS3RS - Datasheet

MBA

Category Information

Threaded Rod - Clamping Studs

Clamping Studs Threaded Rod. Steel and 303 stainless steel.

  • Threaded metal rods or posts that serve as a crucial component in workholding systems to securely fasten workpieces, fixtures, and machinery like vices to a table or machine bed.
  • Used in conjunction with T-nuts, flange nuts, or specialized zero-point clamping systems, provide high-precision, repeatable, and fast setups by creating a secure point of contact and allowing for quick adjustments.
  • Metric and imperial sizes.
  • Yield strength 100,000 PSI. Tensile strength 125,000 PSI

Product Data

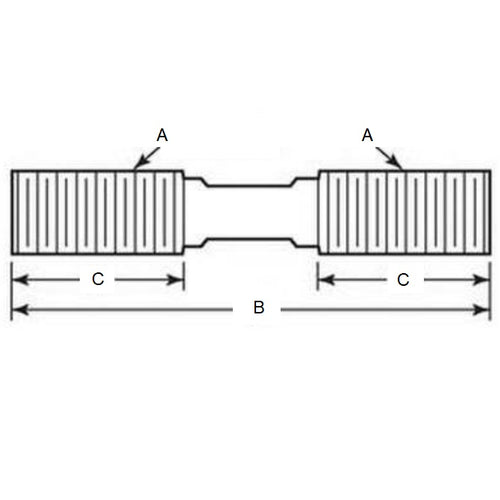

  • Thread : 5/16-18 UNC (7.94mm)
  • Length (L) 127.00 mm
    (Equiv. 5 in.)
  • Thread Length (A) 28.58
  • Thread Length (B) 28.58 mm
  • Hardness ASTM A 311 Class B
  • Material Stress Proof Steel to ASTMA311 Class B
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SUS-3
    • SUS3
