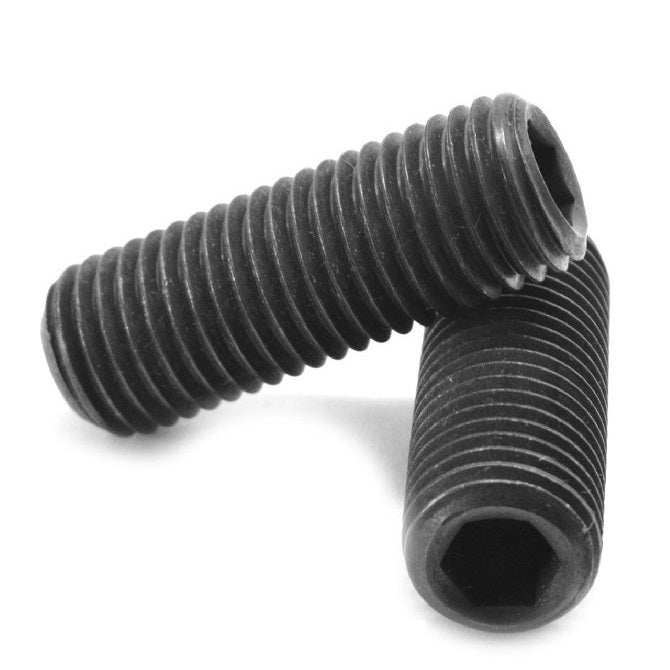

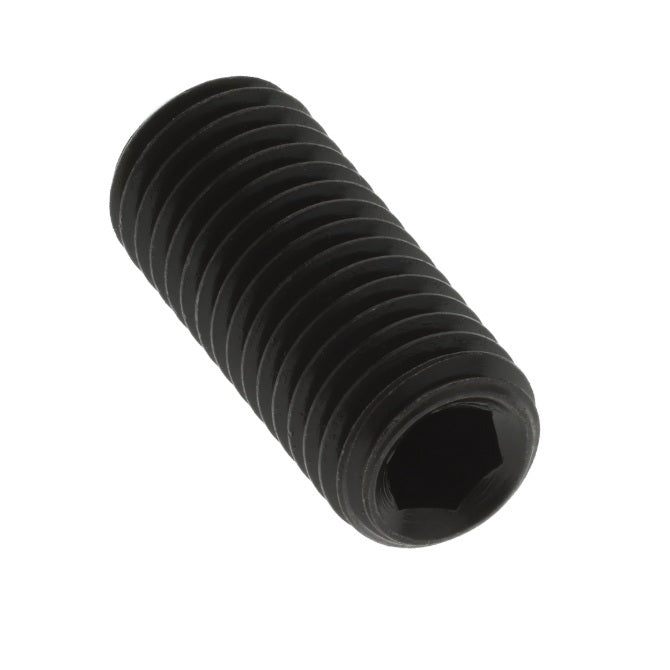

SS079C-0127-AS - Datasheet

Brighton Best

Product Data

• Thread Size : 5/16-18 UNC (7.94mm)
• Thread Length (L) 12.7 mm
  (Equiv. 0.5 in.)
• Type Standard Cup Point
• Hex Key Size 3.97 (5/32)
• Pitch 1.411 mm
• Threads Per Inch 18 TPI
• Finish Hardened, Black Oxide Coated
• Material Carbon Steel - Hardened GD14.9

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91375A578
• Small Parts SSAS-5618-8
• BRB-101387P
• BRB101387P
• SSAS56188
• HK32146
• HK-32146
