CHE-56RS - Datasheet
MBA
Category Information

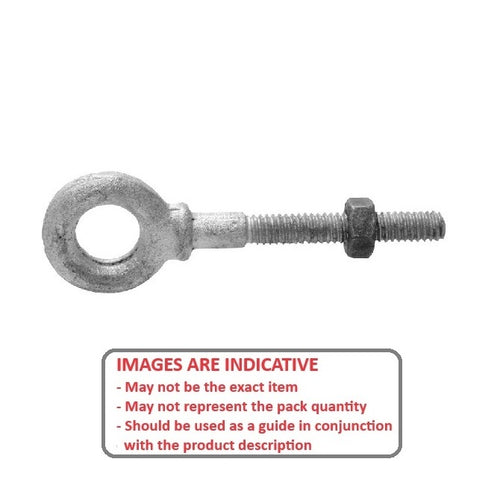

Eye Bolts - Partial Threaded Shank - Shouldered - Carbon SteelCarbon Steel Shouldered Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.
- Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

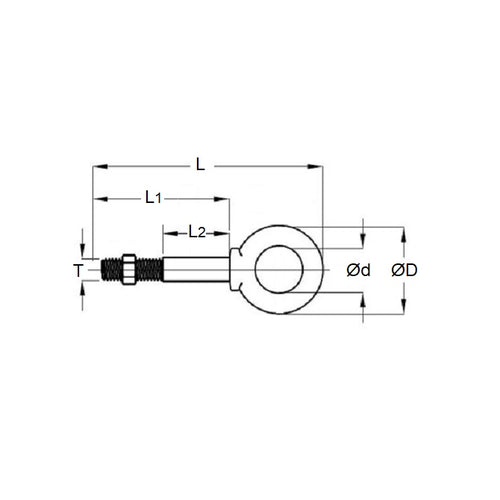

Product Data
- Thread Size : 5/16-18 UNC (7.94mm)
- Shank Length
57.150
mm
(Equiv. 2.25 in.) - Eye Inside Diameter
15.875
mm
(Equiv. 0.625 in.) - Rated Capacity 363 Kg
Product Compliance and Data
Additional Resources
Cross References
- 3018T15
