KF079C-057-5L-PA - Datasheet
MBA
Category Information

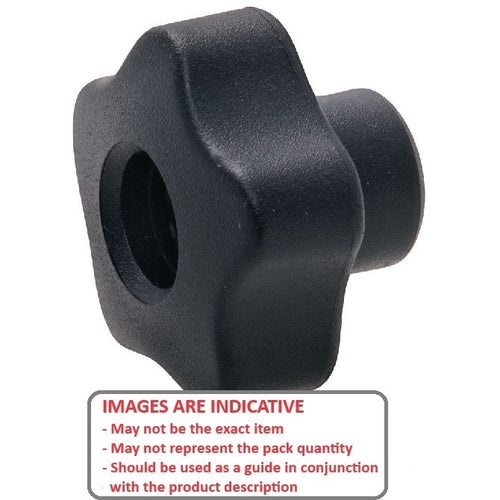

Knobs - Lobe - Five Lobe - Female - Through HoleThrough Hole Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 5/16-18 UNC (7.94mm)

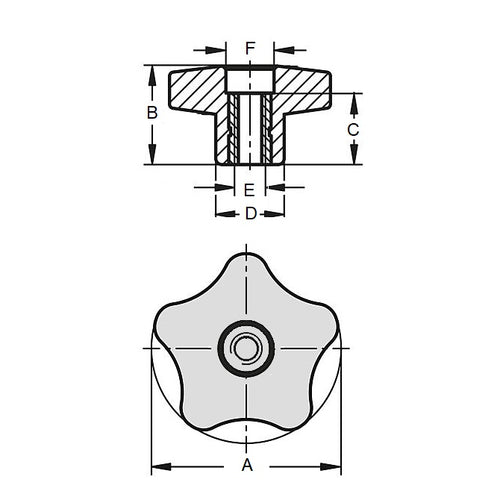

- Head Diameter (A)
57.15
mm
(Equiv. 2.25 in.) - Thread Length
25.4
mm
(Equiv. 1 in.) - Colour Black
- Hub Diameter (C) 22.23 mm
- Hub Length (D) 12.70 mm
- Knob Height (B) 25.40 mm
- Material Steel with Knob Lock
Product Compliance and Data
Additional Resources
Cross References
- KLK-75
- KLK75
