FS-2RS - Datasheet

MBA

Category Information

Eye Bolts - Threaded Shank - Shouldered - Carbon Steel - Standard

Standard Carbon Steel Shouldered Threaded Shank Eye Bolts. Forged self coloured carbon steel.

  • Forged self coloured carbon steel.
  • Should not be used for angular lifts greater than 45o. Safety swivel hoist rings are recommended for such applications.

Product Data

  • Thread Size : 5/16-18 UNC (7.94mm)
  • Shank Length 28.575 mm
    (Equiv. 1.125 in.)
  • Eye Inside Diameter 22.225 mm
    (Equiv. 0.875 in.)
  • Rated Capacity 408 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3014T46
    View full details

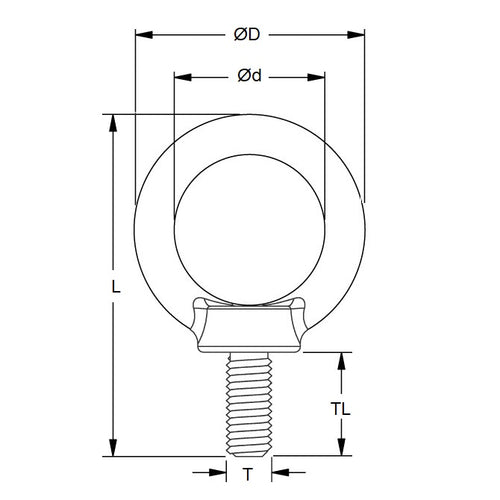

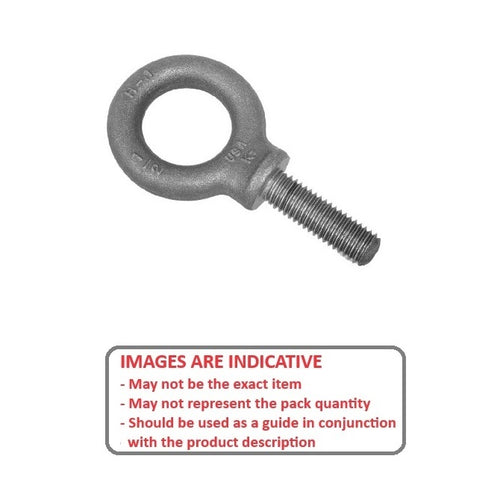

    FS-2RSDiagramFS-2RSImage
