IN-TP-079C-13-A-S3 - Datasheet
MBA
Category Information

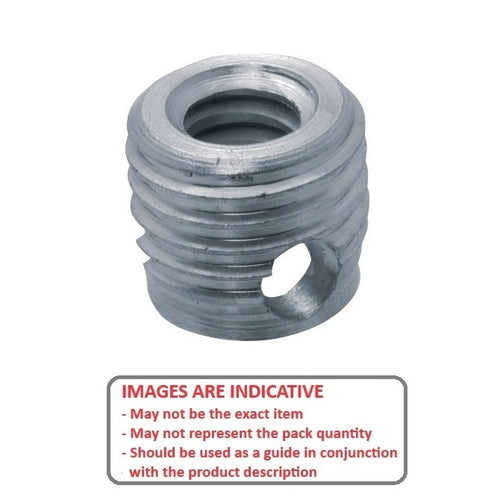

Inserts - Self Tapping - For Aluminium - Stainless 303Stainless 303 For Aluminium Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut their own threads into the wall of permanent installations.
- Provides a strong wear and vibration resistant thread.
- Low volumes can be installed by winding in with a bolt through the threaded centre. Large volumes can be installed with hand installation tools (Sold Seperately)
- Hole sizes are reference only. Can vary on batches. Optimum hole size is to be determinded through experimentation.
- A 60o countersink is required for flush mounting.
- Can be used in Aluminium, aluminium alloy or magnesium. Made from 303 stainless steel.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

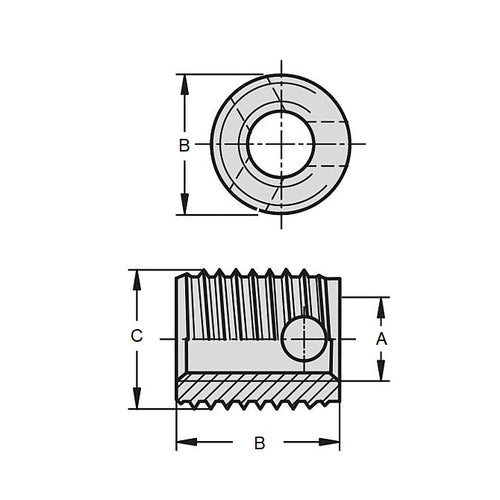

- Internal Thread : 5/16-18 UNC (7.94mm)
- Rec. Hole Diameter
11.100
mm
(Equiv. 0.437 in.) - Length (L)
13.7
mm
(Equiv. 0.539 in.) - Outside Diameter (B) 12.014 mm
- Required Hole Depth 10.998 mm
- Material to be used in Aluminium, Aluminium Alloy, Magnesium and Mild Steel
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- INTP0794C137AS3
