EZL-079C-127C-123-C - Datasheet
MBA
Category Information

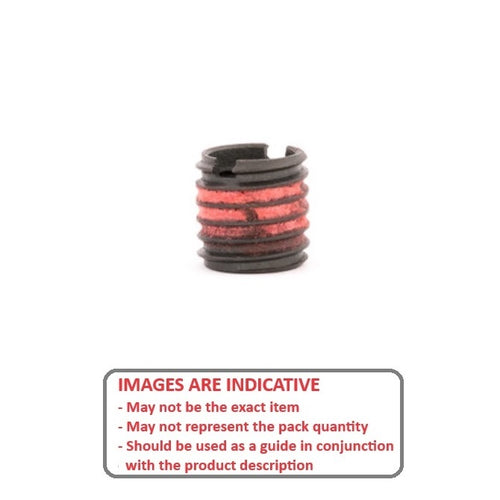

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

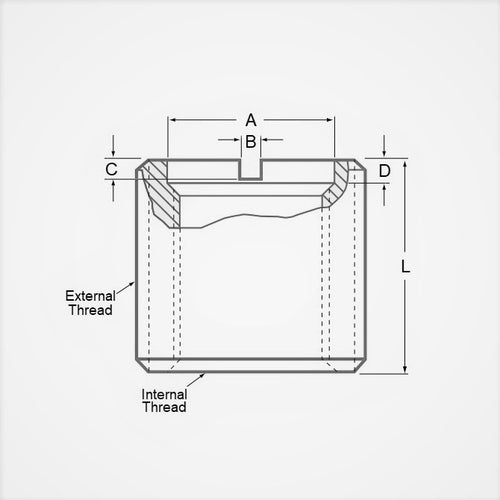

Product Data
- Internal Thread : 5/16-18 UNC (7.94mm)
- Length
12.29
mm
(Equiv. 0.484 in.) - External Tap Size 12.700mm (1/2-13 UNC)
- Tapping Hole Size 10.72 mm
- Drive Tool 500-4
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 329-5
- 90248A027
- 3295
