EZL-079C-127C-123-S3 - Datasheet
MBA
Category Information

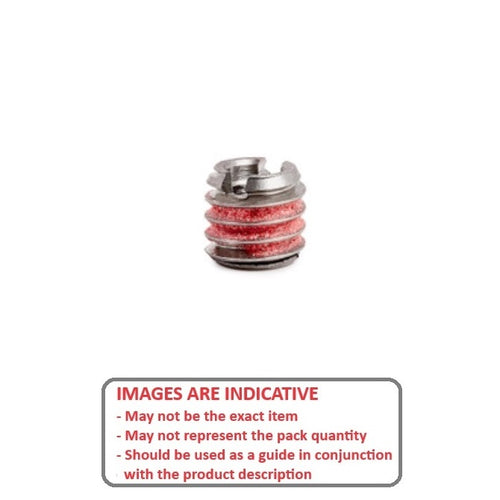

Thread Repair - Inserts - EZ-Lok - Solid Stainless SteelSolid Stainless Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required. Simply drill and tap the hole to suit the external thread.
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data
- Internal Thread : 5/16-18 UNC (7.94mm)
- Length
12.29
mm
(Equiv. 0.484 in.) - External Tap Size 1/2-13 UNC (12.7mm)
- Tapping Hole Size 10.72 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 303-5
- 90247A013
- 3035
