EZL-079C-111C-111-C - Datasheet
MBA
Category Information

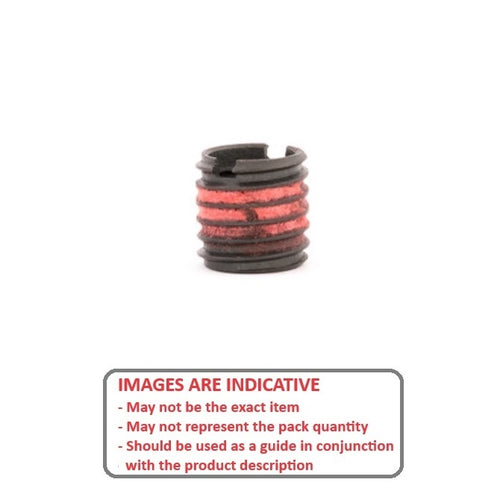

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

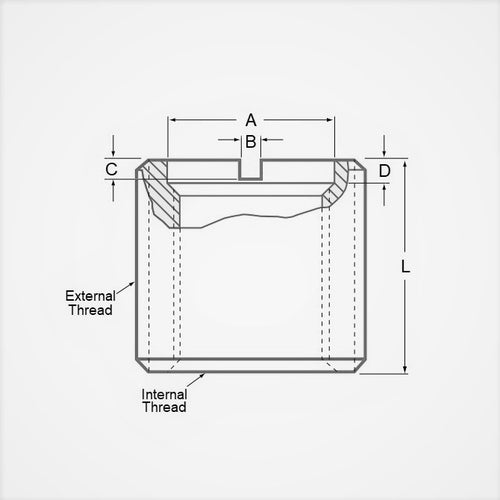

Product Data
- Internal Thread : 5/16-18 UNC (7.94mm)
- Length
11.10
mm
(Equiv. 0.437 in.) - External Tap Size 11.113mm (7/16-14 UNC)
- Tapping Hole Size 10.08 mm
- Drive Tool 500-4
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 319-5
- 90259A139
- 3195
