BEB-1520RS - Datasheet

MBA

Category Information

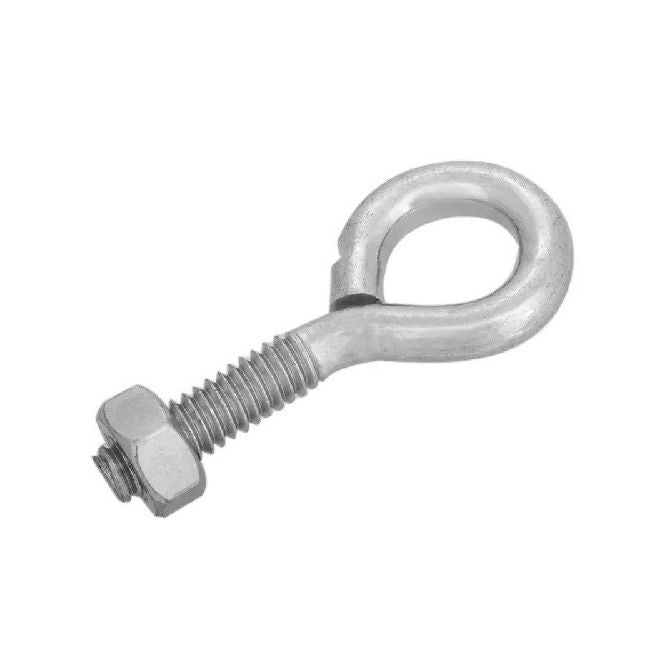

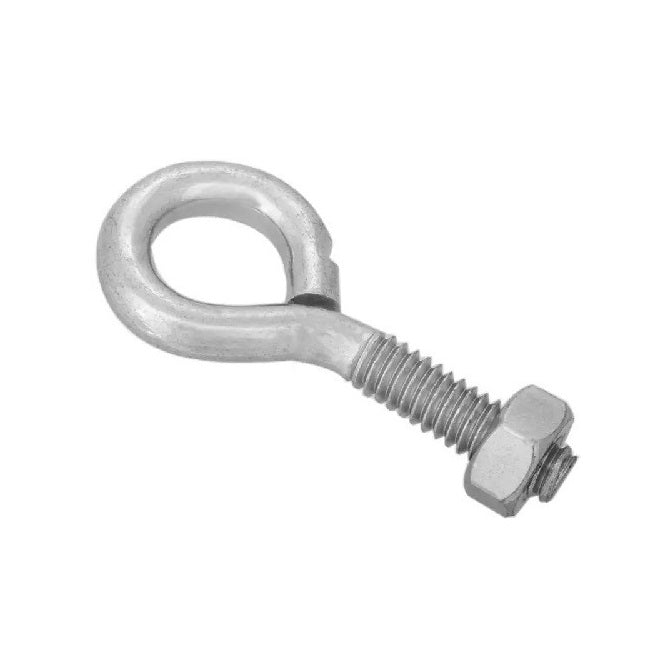

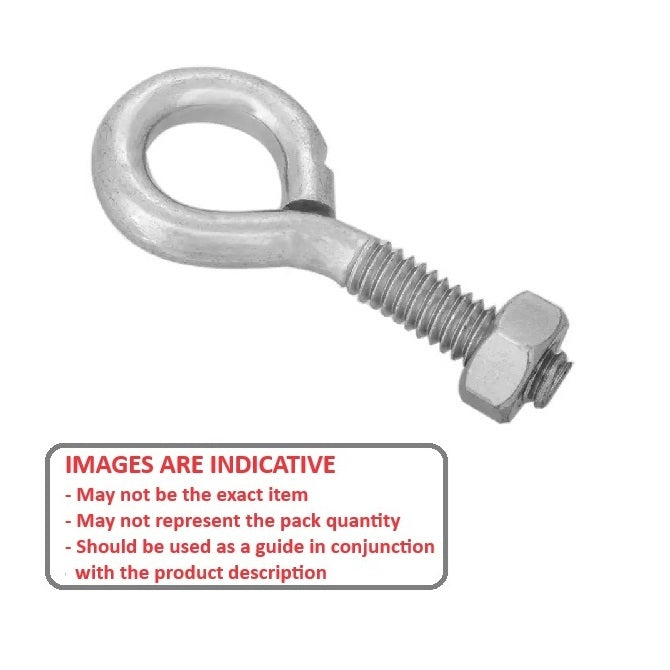

Eye Bolts - Bent - Stainless Steel

Stainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.

  • Complete with nut.
  • Rolled threads.

Product Data

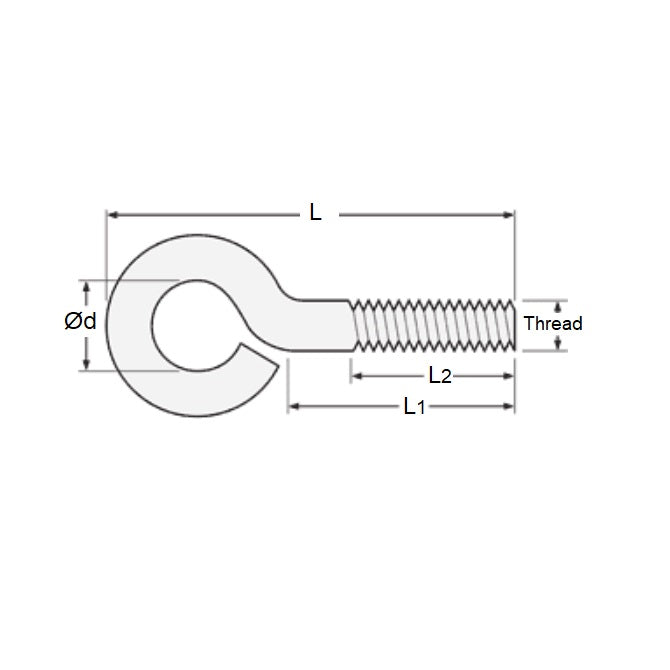

  • Thread : 5/16-18 UNC (7.94mm)
  • Overall Length 104.775 mm
    (Equiv. 4.125 in.)
  • Shank Length 76.200 mm
    (Equiv. 3 in.)
  • Thread Length 38.100 mm
  • Eye Inside Diameter 15.875 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 9489T67
