EB-225RS - Datasheet
MBA
Category Information

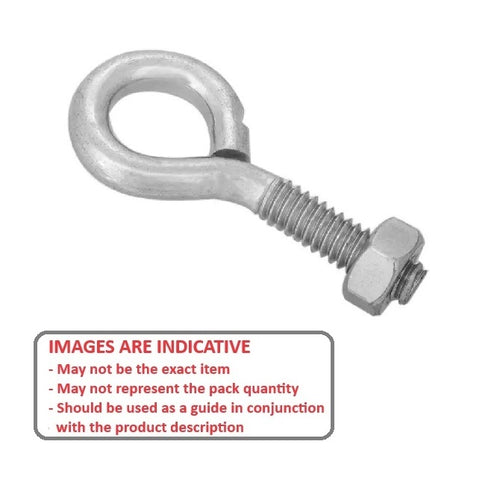

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Complete with nut.
- Rolled threads.
Product Data
- Thread : 5/16-18 UNC (7.94mm)
- Overall Length
101.600
mm
(Equiv. 4 in.) - Shank Length
88.900
mm
(Equiv. 3.5 in.) - Thread Length 7.925 mm
- Eye Inside Diameter 7.925 mm
