EB-255RS - Datasheet

MBA

Category Information

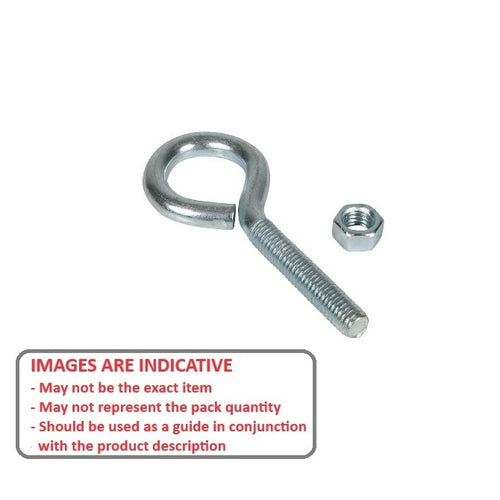

Eye Bolts - Bent - Steel

Steel Bent Eye Bolts. Not recommended for lifting.

  • Carbon steel zinc plated.
  • Complete with nut.
  • Rolled threads.

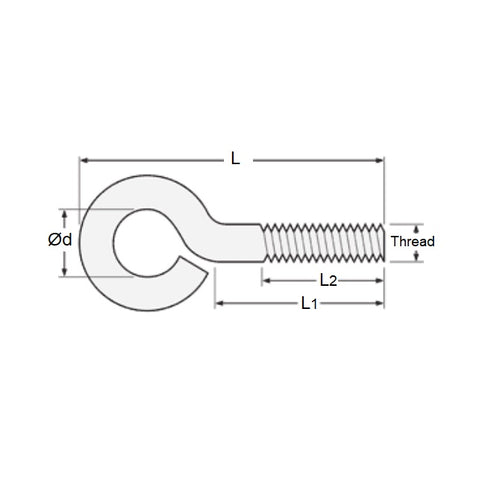

Product Data

  • Thread : 5/16-18 UNC (7.94mm)
  • Overall Length 101.600 mm
    (Equiv. 4 in.)
  • Shank Length 88.900 mm
    (Equiv. 3.5 in.)
  • Thread Length 7.938 mm
  • Eye Inside Diameter 7.938 mm
Country of Origin: US
