Miniature Bearings Australia
SC079W-057-HS-CZ - Datasheet
MBA
Category Information

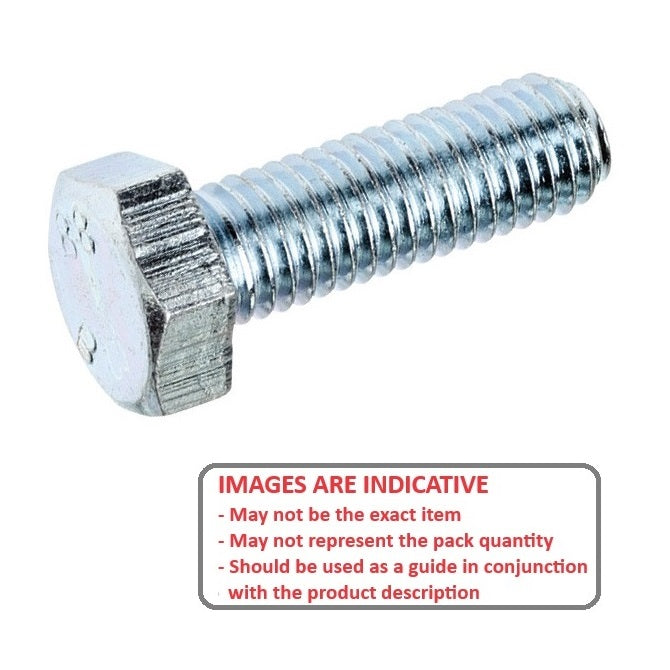

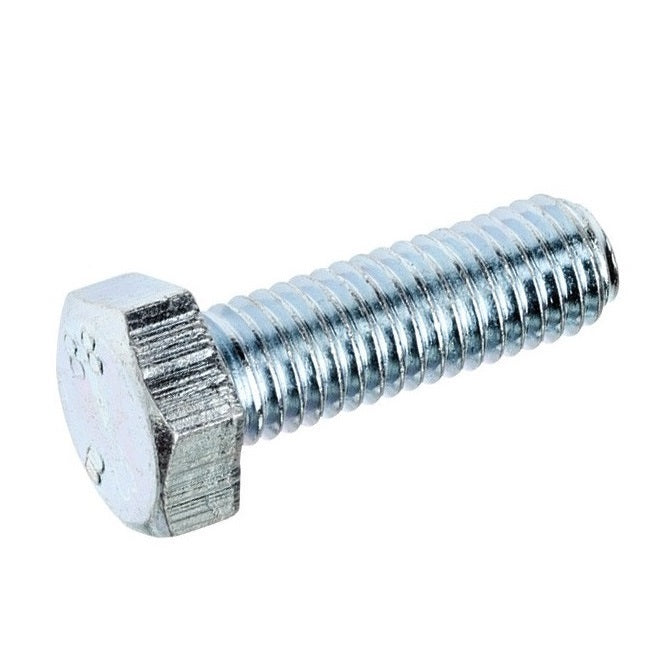

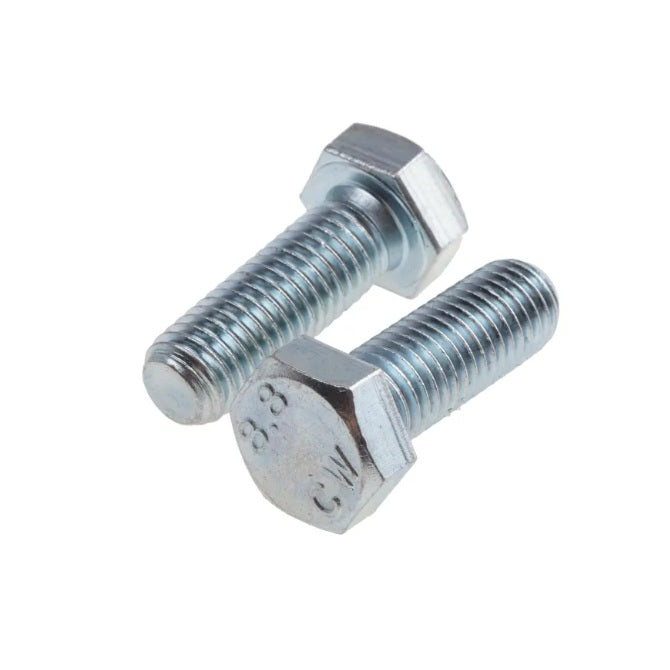

Screws - Hex Head - Full Thread - Steel Zinc PlatedSteel Zinc Plated Full Thread Hex Head Screws. BSW and METRIC - Set Screws
- An expanded range may be available on special order. Please enquire.
Product Data

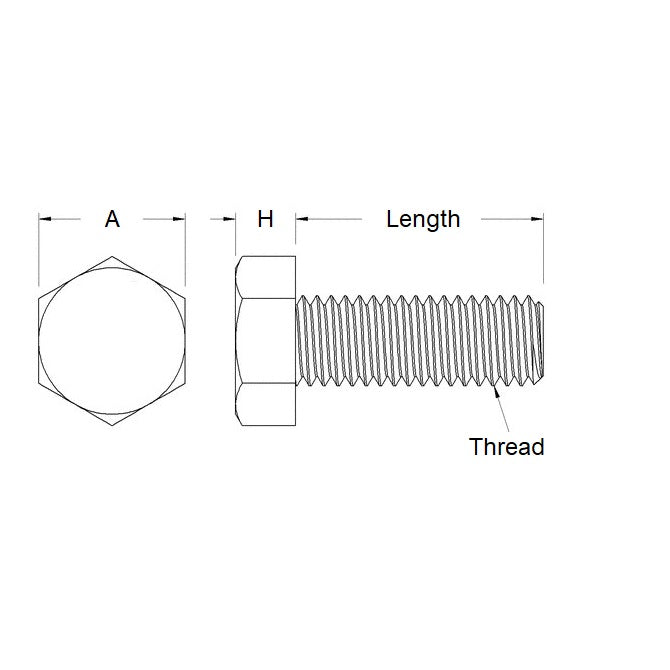

- Thread Size (C) : 5/16-18 BSW (7.94mm)
- Thread Length (L)
57.2
mm
(Equiv. 2.252 in.) - Material Zinc Plated Steel
- Max Head Diameter 12.70 mm
- Max Head Height 5.36 mm
- Type Set Screw - Full Thread
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSHSZP516214
