NART5VR - Datasheet
MBA
Category Information
Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data

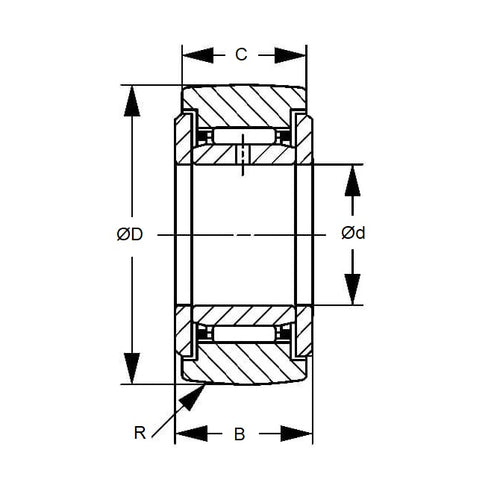

- ID (d)
:
5.00
mm
(Equiv. 0.197 in.) - OD (D)
16.00
mm
(Equiv. 0.63 in.) - Width (C)
11.00
mm
(Equiv. 0.433 in.) - Inner Ring Width (B) 12.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 690.00 kgf
- Static Load Rating 850.00 kgf
- Closures Shields
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NART-5VR
- NART5VR
