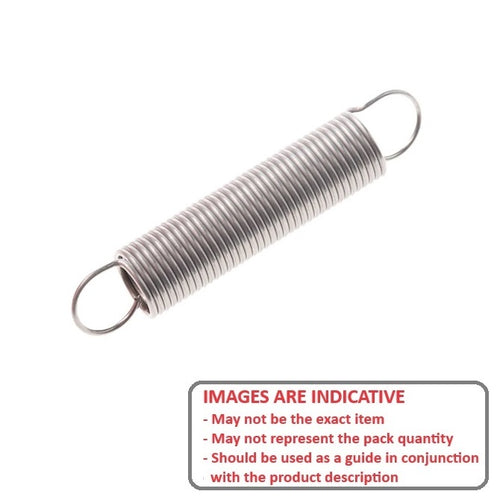

Springs - Extension - Stainless Steel

Stainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.

  • Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
  • Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
  • This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
  • 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
  • 302 stainless steel is slightly magnetic.

Product Data

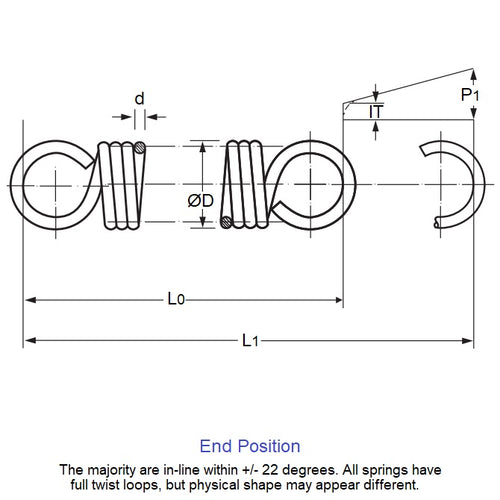

  • OD (D0) : 5.00 mm
    (Equiv. 0.197 in.)
  • Approx. Overall Length (L0) 15 mm
    (Equiv. 0.591 in.)
  • Wire Diameter (d) 0.800 mm
    (Equiv. 0.031 in.)
  • Max. Extension (L1) 17.90 mm
  • Spring Rate 5.39 N/mm
  • Initial Tension (IT) 5.1 N
  • Load at L1 20.79 N
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: JP
