ES-0500-0150-06-M - Datasheet

MBA

Category Information

Springs - Extension - Music Wire

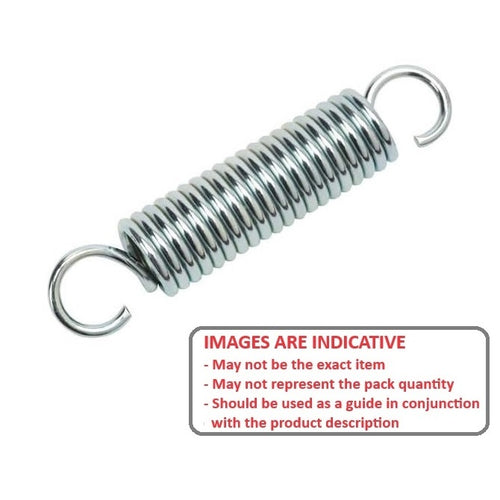

Music Wire Extension Springs. Carbon spring steel, zinc plated selection.

  • Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
  • Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
  • This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
  • Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).

Product Data

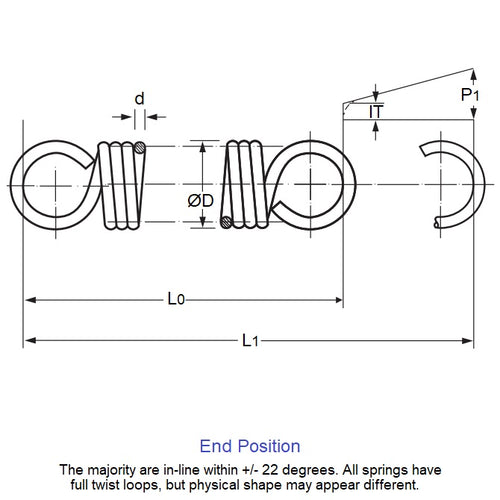

  • OD (D0) : 5.00 mm
    (Equiv. 0.197 in.)
  • Overall Length (L0) 15 mm
    (Equiv. 0.591 in.)
  • Wire Diameter (d) 0.600 mm
    (Equiv. 0.024 in.)
  • Max. Extension (L1) 20.60 mm
  • Spring Rate 1.27 N/mm
  • Initial Tension (IT) 1.6 N
  • Load at L1 8.53 N
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-AWS5-15
  • CAWS515
