CS-0500-0150-05-S4-C - Datasheet
MBA
Category Information

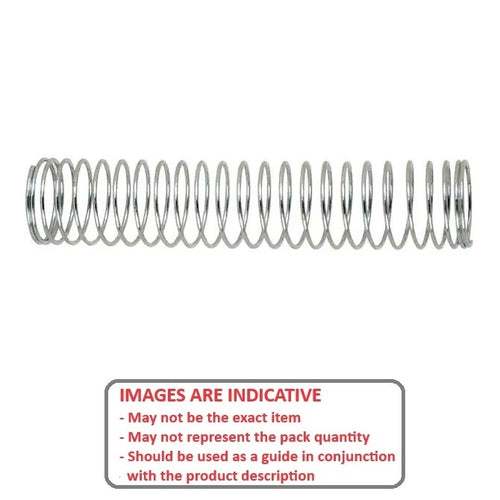

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
5.00
mm
(Equiv. 0.197 in.) - Free Length (L0)
15.0
mm
(Equiv. 0.591 in.) - Wire Diameter (d)
0.50
mm
(Equiv. 0.02 in.) - Loaded Height (L1) 9.00 mm
- Load at L1 5.90 N
- Rate (P/f) 1.0 N/mm
- Solid Height (Sh) 4.75 mm
- Approx. ID 4.0 mm
- End Type Closed
- Max Rod Dia. (A) 4.00 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-UL5-15
- CUL515
