Miniature Bearings Australia
BL-00500-TO - Datasheet
MBA
Category Information

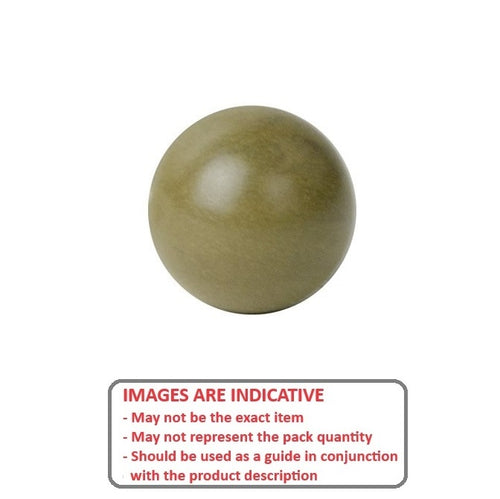

Balls - Plastic - TorlonTorlon Plastic Balls. Torlon 4301 Bearing Grade Balls. Grade 1.
- Plastic ball grades are not the same as those for precision balls
- Polyamide-imide (Torlon) Balls.
- Rockwell Hardness (Method A): E86 or M109-119.
- Specific Gravity: 1.38.
- Colour: Brown Opaque.
Product Data
- Diameter (D)
:
5.00
mm
+/- 0.051
(Equiv. 0.197 in.) - Material Torlon (Polyamide-imide)
- Precision Grade II
- Hardness Rockwell E86 or M109-119
- Properties High resistance to heat, high strength, dimensional stability and impact resistance.
- Colour Green-Brown
- Specific Gravity 1.38
- Material Torlon (Polyamide-imide)
Product Compliance and Data
Additional Resources
Cross References
- 9593K25
