PLIT-050-095F-50-LH - Datasheet

MBA

Category Information

Plungers - Indexing Large Handle

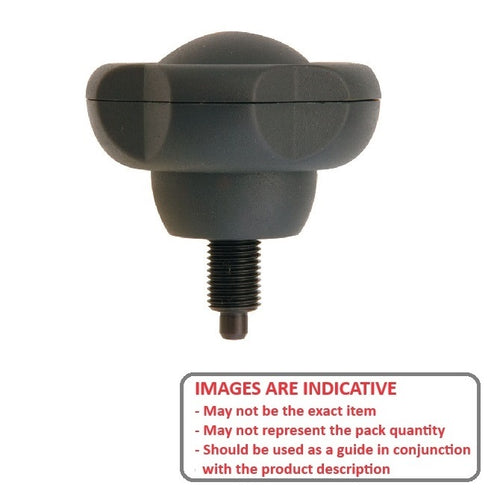

Indexing Large Handle Plungers. Used to prevent change in locking position due to shearing force. Spring loaded for use in fastening, locating and indexing on equipment, tooling and other applications.

  • Extra large fluted handle for quick and easy plunger retraction
  • Can be fully retracted into the body by pulling up on the handle.
  • Handle is black thermoplastic.
  • Body and pin are steel with black oxide finish.

Product Data

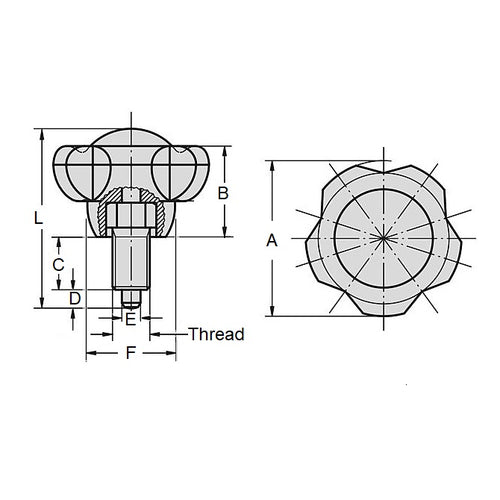

  • Thread (B) : 3/8-24 UNF (9.53mm)
  • Thread Length (C) 13.0 mm
    (Equiv. 0.512 in.)
  • Handle Diameter (A) 50.0 mm
    (Equiv. 1.969 in.)
  • Handle Length (B) 34.8 mm
  • Nose Diameter (E) 5.0 mm
  • Tip Length (D) 5.1 mm
  • 50.0
  • 34.8
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • GK-750
    • GK750
