REF-050-R-PP - Datasheet
MBA
Category Information

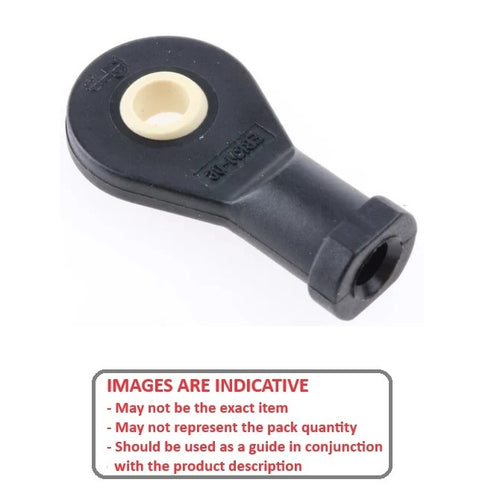

Rod Ends - Female - PlasticPlastic Female Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
5.000
mm
(Equiv. 0.197 in.) - Overall Length (L)
36.00
mm
(Equiv. 1.417 in.) - Thread Size M5x0.8 Right
- Thread Length (l2) 10.00 mm
- Head Width (W) 6.00 mm
- Eye Width (W1) 8.00 mm
- Head Diameter (D1) 18.00 mm
- Centre Height (l1) 27.00 mm
- Grease Nipple No
- Max Angle of Pivot 30 °
- Max Torque Strength 5.00 n.m
- Body Width/Flange Width(W2/D3) 9.00 / 12.00 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- I530
- I-530
- S62GFRM0508R
