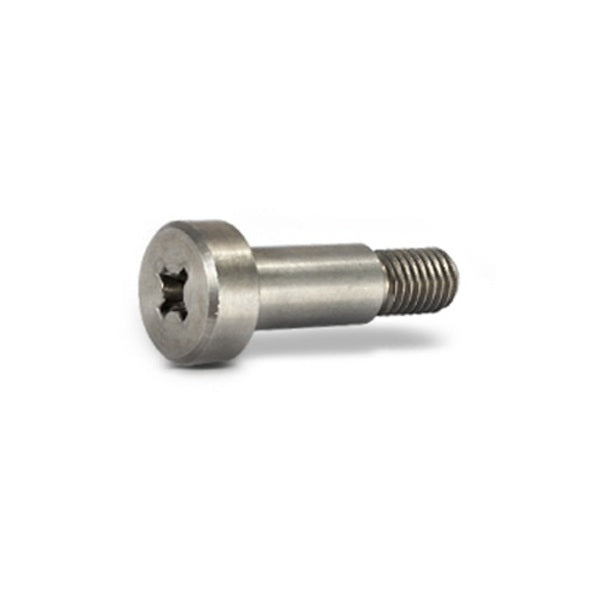

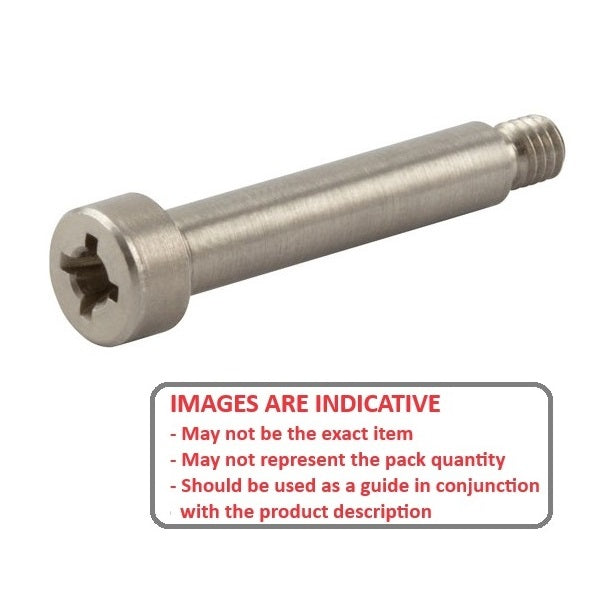

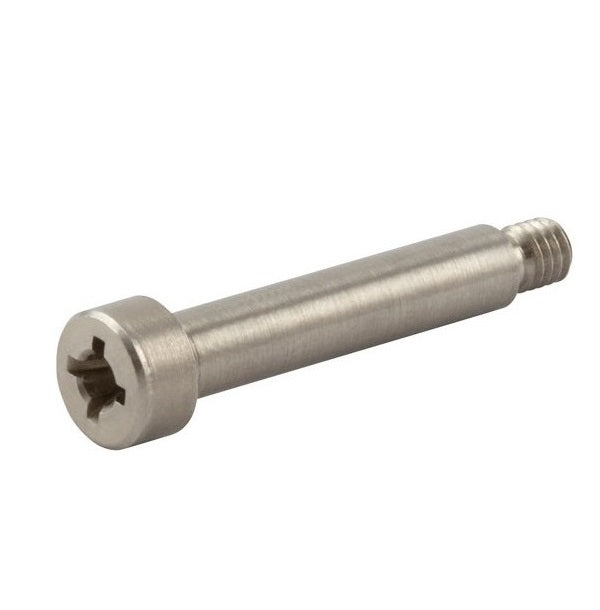

SHLD050-010-PH-S3 - Datasheet

MBA

Product Data

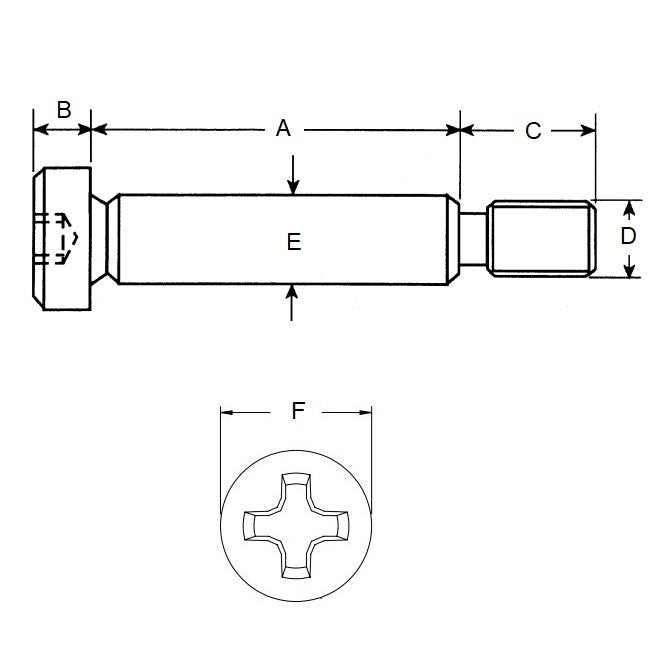

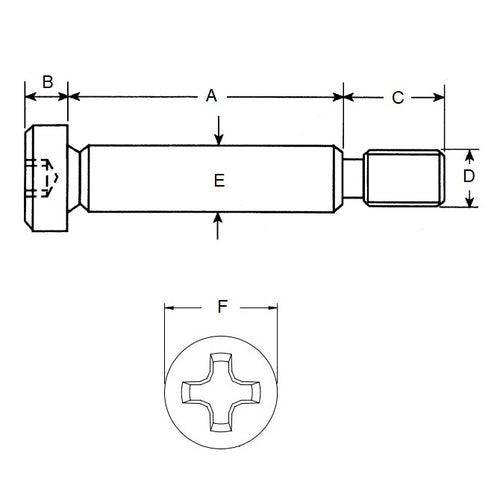

• Shoulder Diameter (D1) : 5.000 mm _{- 0.013 / - 0.038}
  (Equiv. 0.197 in.)
• Shoulder Length (A) 10.000 mm _{+ 0.013 / + 0.063}
  (Equiv. 0.394 in.)
• Thread (D) M4x0.7
• Max. Thread Length (l) 5.00 mm
• Head Height (H) 4.00 mm
• Head Diameter (D) 8.00 mm
• Phillips Drive
• Philips Size 3
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
