RCL-050-096-S4 - Datasheet
MBA
Category Information

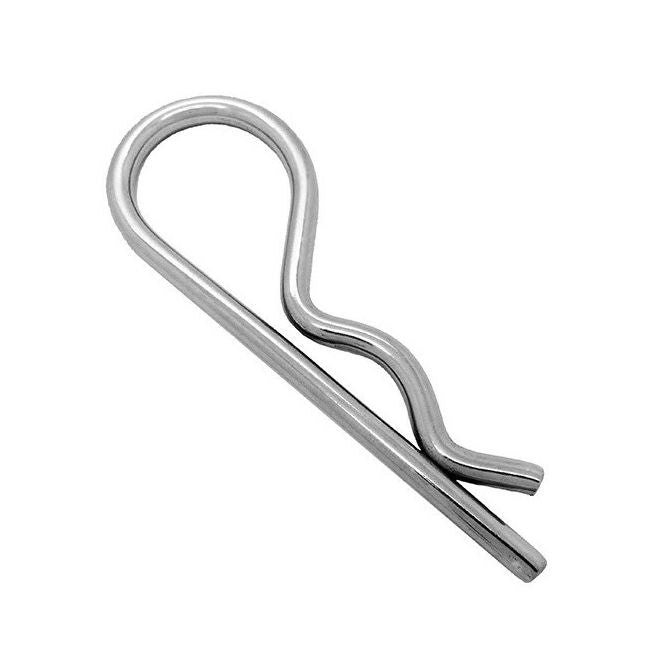

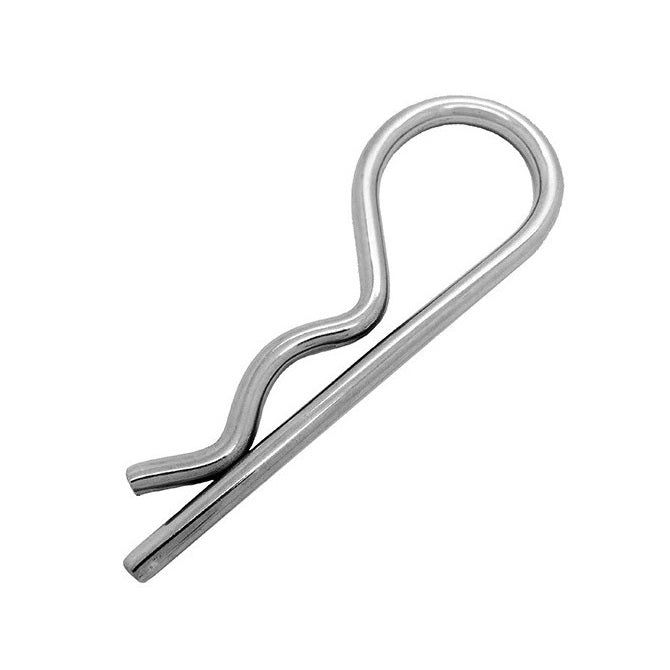

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data
- Wire Thickness (d)
:
5.00
mm
(Equiv. 0.197 in.) - Length (L)
96.0
mm
(Equiv. 3.78 in.) - Material 304 Stainless Steel
- Drill Hole Size 5.50 mm
- Inside Eye Diameter (D) 23.81 mm
- Shaft Size Range 15.88 to 25.40 mm
- Approx. Bridge Length (D1) 36 mm
- Material Stainless Steel
