RCL-050-110-ZD - Datasheet
MBA
Category Information

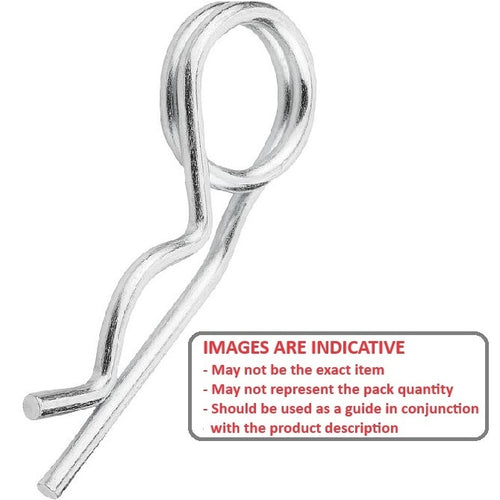

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

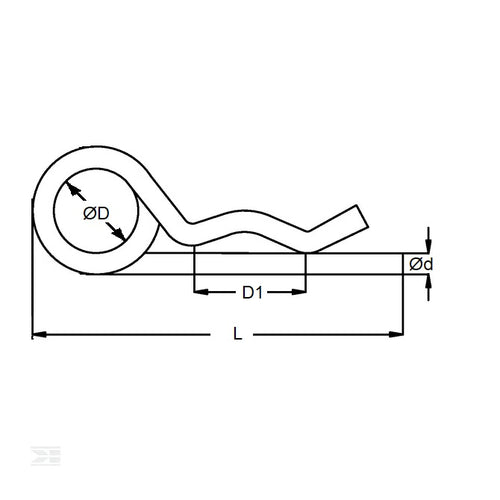

- Wire Thickness (d)
:
5.00
mm
(Equiv. 0.197 in.) - Length (L)
110.0
mm
(Equiv. 4.331 in.) - Material Zinc Plated
- Drill Hole Size 5.50 mm
- Inside Eye Diameter (D) 26.00 mm
- Shaft Size Range 18.00 to 30.00 mm
- Approx. Bridge Length (D1) 40 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- RPD5-92
- RPD592
