F684-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.

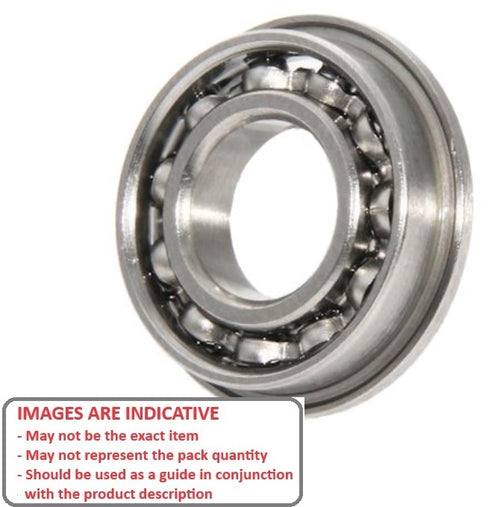

- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

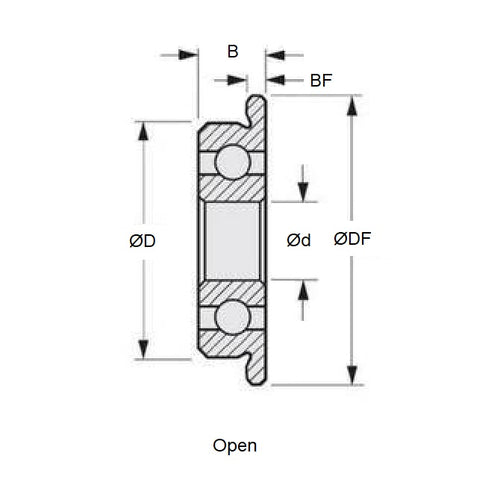

- ID (d)
:
4.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.157 in.) - OD (D)
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - Width (B)
2.500
mm
+ 0.000 / - 0.125
(Equiv. 0.098 in.) - Flange Diameter (DF) 10.300 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part F684
- Limiting Speed 53000
- Cage Type Standard
- Static Load Rating KGf 23
- Dynamic Load Rating KGf 65
- Radii 0.10 mm
- Inner Shoulder (UI) 5.20mm
- Outer Shoulder (UO) 7.50 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
