OW-0040-0080-0060-R - Datasheet

MBA

Category Information

Bearings - One Way - Roller

Roller One Way Bearings. Roller Clutch Bearings rotate in one direction only.

  • One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
  • Commonly used in over-runnung, or backstopping applications.
  • The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
  • Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.

Product Data

  • ID (d) : 4.000 mm
    (Equiv. 0.157 in.)
  • OD (D) 8.000 mm
    (Equiv. 0.315 in.)
  • Width (B) 6.000 mm
    (Equiv. 0.236 in.)
  • Overrun Limiting Speed 26000 RPM
  • Type Drawn Cup Standard
  • Bearings Material Steel
  • Max Torque 0.34 N.m
  • Cage Material Steel
  • Material Chrome Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

    Applications & Uses

    • RC Car Parts
    • Custom Works - Dominator - Roller Clutch Bearing
    • Custom Works - Dominator With 3 PC. Thrust Bearing. - Roller Clutch Bearing 4-8-6mm

    Cross References

    • Torrington FC-4-K
    • INA HF0406
    • ISO HF0406
    • Torrington HF0406KF
    • S99NH3MURC0406
    • FC4K
    • FC-4K
    View full details

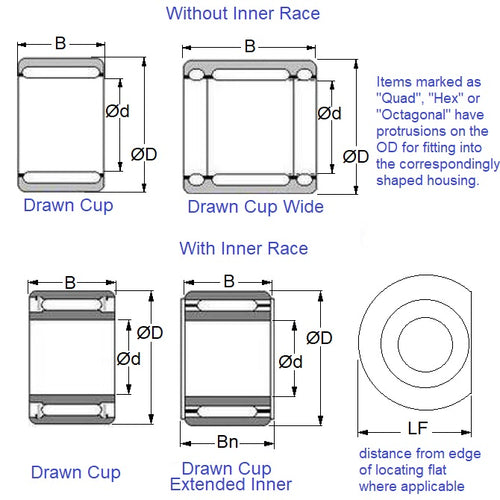

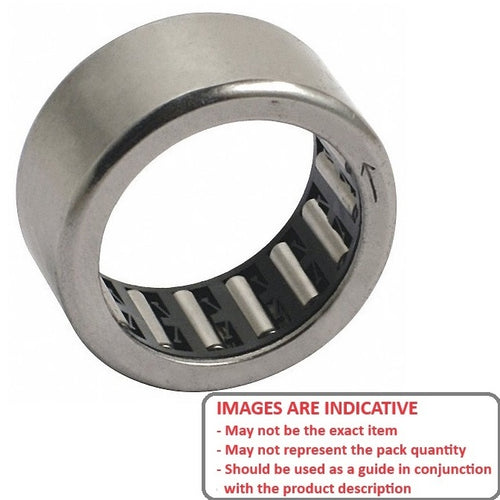

    OW-0040-0080-0060-RDiagramOW-0040-0080-0060-RImage
