COL-00400-008-05-CS - Datasheet
MBA
Category Information

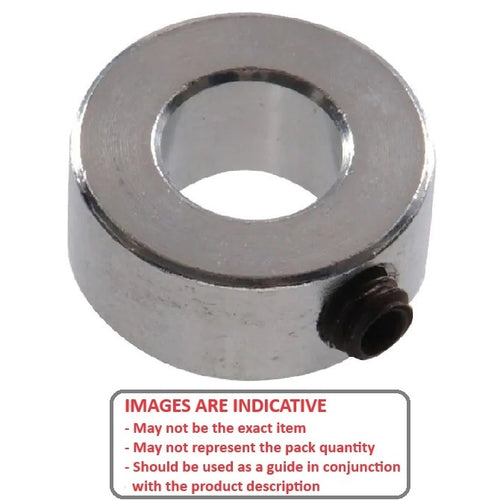

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
4.000
mm
+ 0.018 / - 0.000
(Equiv. 0.157 in.) - Outside Diameter (D)
8.00
mm
(Equiv. 0.315 in.) - Overall Width (S)
5.0
mm
(Equiv. 0.197 in.) - Collar Style Plain Collar
- Material Carbon Steel
