SFMR84A-ZZ-MC3 - Datasheet

MBA

Category Information

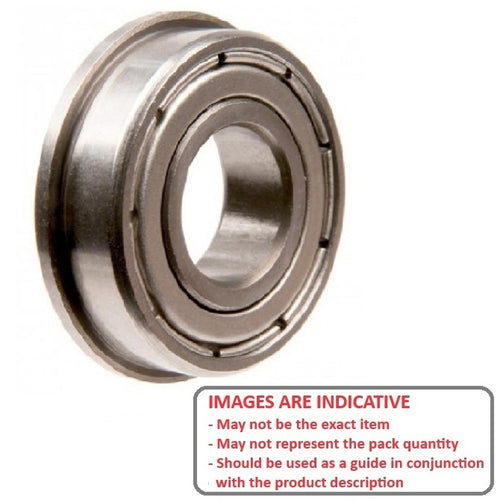

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Single row radial ball bearings with flanges.
Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

Product Data

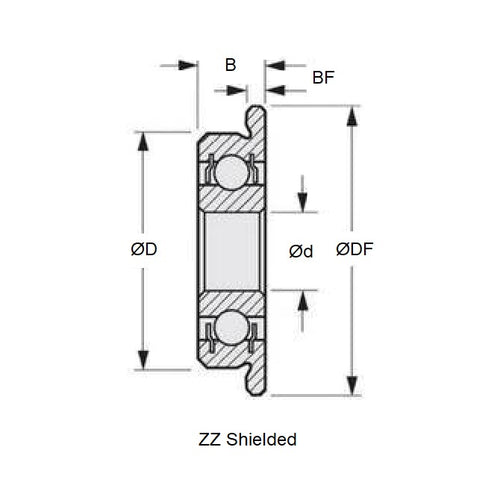

ID (d) : 4.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.157 in.)
OD (D) 8.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.315 in.)
Width (B) 3.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.118 in.)
Flange Diameter (DF) 9.200 mm
Flange Width (BF) 0.600 mm
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial Flanged
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part FMR84A
Limiting Speed 56000
Cage Type Standard
Static Load Rating KGf 14
Dynamic Load Rating KGf 40
Radii 0.15 mm
Inner Shoulder (UI) 5.00mm
Outer Shoulder (UO) 7.40 mm
Number of Balls 7
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Boat Parts
RC Car Parts
RC Helicopter Parts
Robbe - Sea Jet Electric Boat - Flanged Bearing 4-8-3mm
Traxxas - Villain - Flanged Bearing 4-8-3mm
Traxxas - Villain 4 - Flanged Bearing 4-8-3mm
Academy and MRC - STR-4 1/10 Scale - Flanged Bearing 4-8-3mm
Cox - Bandito - Flanged Bearing 4-8-3mm
Cox - Ultra Stock - Flanged Bearing 4-8-3mm
Kyosho - Optionima Complete Kit - Flanged Bearing 4-8-3mm
Kyosho - Optionima Upgrade - Flanged Bearing 4-8-3mm
Kyosho - Outlaw Truck - Flanged Bearing 4-8-3mm
Kyosho - Raider - Flanged Bearing 4-8-3mm
Kyosho - Sideways - Flanged Bearing 4-8-3mm
Kyosho - Turbo Raider - Flanged Bearing 4-8-3mm
Kyosho - Ultima - Flanged Bearing 4-8-3mm
Kyosho - Ultima II - Flanged Bearing 4-8-3mm
Kyosho - Ultima Pro XL - Flanged Bearing 4-8-3mm
Ofna - 9.5 Pro - Flanged Bearing 4-8-3mm
Ofna - Jammin 1 CR With Steering - Flanged Bearing 4-8-3mm
Schumaker - Cat 1998 - 2000 - Flanged Bearing 4-8-3mm
Schumaker - Cat 3000 - Flanged Bearing 4-8-3mm
Schumaker - Cat 3000 With Steering - Flanged Bearing 4-8-3mm
Schumaker - Fusion R12 - Flanged Bearing 4-8-3mm
Schumaker - MI2 - Flanged Bearing 4-8-3mm
Schumaker - MI2 EC - Flanged Bearing 4-8-3mm
Schumaker - MI2 Pro Racing Sedan - Flanged Bearing 4-8-3mm
Schumaker - Mission - Flanged Bearing 4-8-3mm
Schumaker - Mission With Steering - Flanged Bearing 4-8-3mm
Schumaker - SST Axis 2 - Flanged Bearing 4-8-3mm
Yokomo - Hot Dog - Flanged Bearing 4-8-3mm
Yokomo - MR-4BX - Flanged Bearing 4-8-3mm
Yokomo - Works 93 - Flanged Bearing 4-8-3mm
Yokomo - YR-4 - Flanged Bearing 4-8-3mm
Yokomo - YR-4 II - Flanged Bearing 4-8-3mm
Yokomo - YR-4M - Flanged Bearing 4-8-3mm
Yokomo - YZ10 - Flanged Bearing 4-8-3mm
Yokomo - YZ10W - Flanged Bearing 4-8-3mm
Century - Ninja Pro 30/46 All - Flanged Bearing 4-8-3mm
Century - Ninja Pro 30/46Upgrade Kit - Flanged Bearing 4-8-3mm
Hirobo - Lepton EX - Flanged Bearing 4-8-3mm
Hirobo - Sceadu 50 Evolution - Flanged Bearing 4-8-3mm

Cross References

57155K554
Similar Part FLWBC4-8A
NTN FLWBC4-8-ZZA
Stainless FMR84AZZMC3
Stainless FMR84A-ZZ-MC3
SSLF840ZZ
SS-LF840-ZZ
SSLF840-ZZ
SFMR84AZZMC3
SFMR84A-ZZMC3
DDLF840-ZZ
DDLF840ZZ
DD-LF840-ZZ
FLWBC48A
FLWBC48ZZA
SMF84ZZ
SMF84-ZZ
FMR84A Basic Size Ref
