Miniature Bearings Australia
W0040-F-008-020-NY - Datasheet
MBA
Category Information

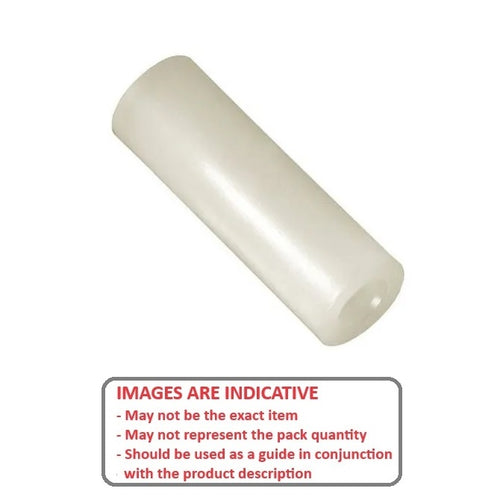

Spacers - Through Bore Round - NylonNylon Through Bore Round Spacers. Shaft spacers - Nylon
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d)
:
4
mm
+ 0.3 / - 0.0
(Equiv. 0.157 in.) - OD (D)
8
mm
(Equiv. 0.315 in.) - Length (L)
2
mm
+ / - 0.15
(Equiv. 0.079 in.) - Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- 93657A030
- PLN42
- PLN4-2
