FMR74A-2RS-ECO - Datasheet
ECO
Category Information

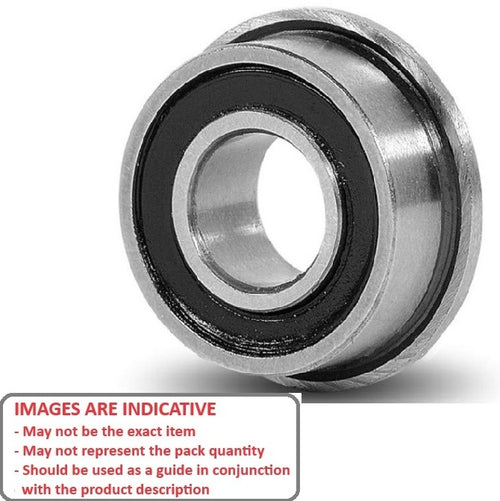

Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

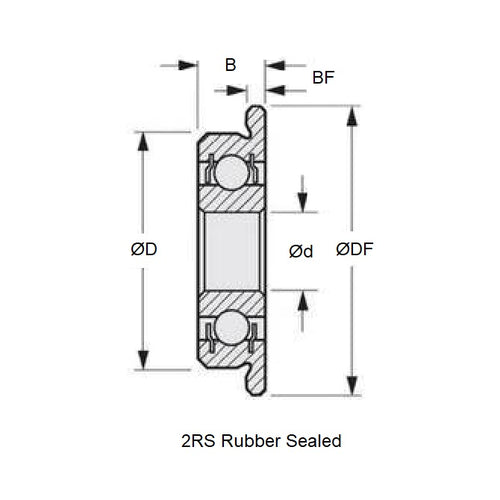

- ID (d)
:
4.000
mm
(Equiv. 0.157 in.) - OD (D)
7.000
mm
(Equiv. 0.276 in.) - Width (B)
2.500
mm
(Equiv. 0.098 in.) - Flange Diameter (DF) 8.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Economy
- Closure Type 2RS
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR74A
- Limiting Speed 38760
- Cage Type Standard
- Static Load Rating KGf 10.4
- Dynamic Load Rating KGf 24.7
- Radii 0.10 mm
- Inner Shoulder (UI) 4.80mm
- Outer Shoulder (UO) 6.30 mm
- Number of Balls 11
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Boat Parts
- RC Car Parts
- Kyosho - Jet Stream - Flanged Bearing 4-7-2.5mm
- Corally - RDX - Flanged Bearing 4-7-2.5mm
- Corally - RDX - US Carpet Spec Edition - Flanged Bearing 4-7-2.5mm
- Team Magic - G4S - Flanged Bearing 4-7-2.5mm
Cross References
- Sealed Width A FMR74 / 2
- Sealed FMR74A / 2
- FMR74A Basic Size Ref
