CP-040-050-12-020-R-3G-P - Datasheet
MBA
Category Information

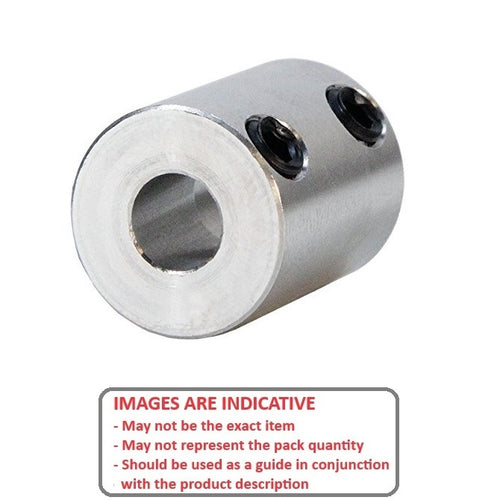

Couplings - Rigid - Set ScrewSet Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.
- An expanded range may be available on special order. Please enquire.
- Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
- Quality Class Commercial: Bore Tolerance +0.051 / -0.000.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Bore (b1)
:
4.000
mm
(Equiv. 0.157 in.) - Bore (b2)
5.000
mm
(Equiv. 0.197 in.) - OD (D)
12.00
mm
(Equiv. 0.472 in.) - Length (L) 20.00 mm
- Bore Depth (B) 10.00 mm
- Quality Class Precision

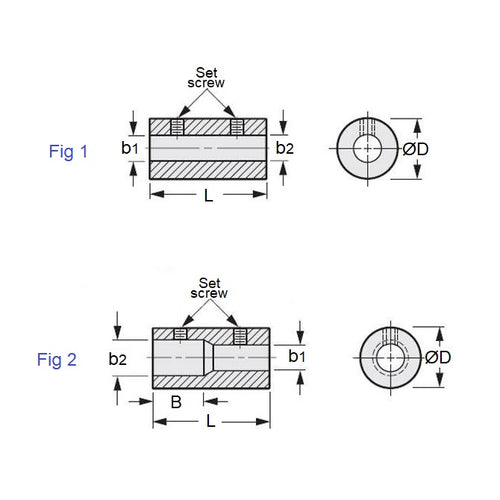

- Figure Fig. 2 M3
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- S51CYYM040050
