PC040-0500-6 - Datasheet
Brighton Best
Category Information

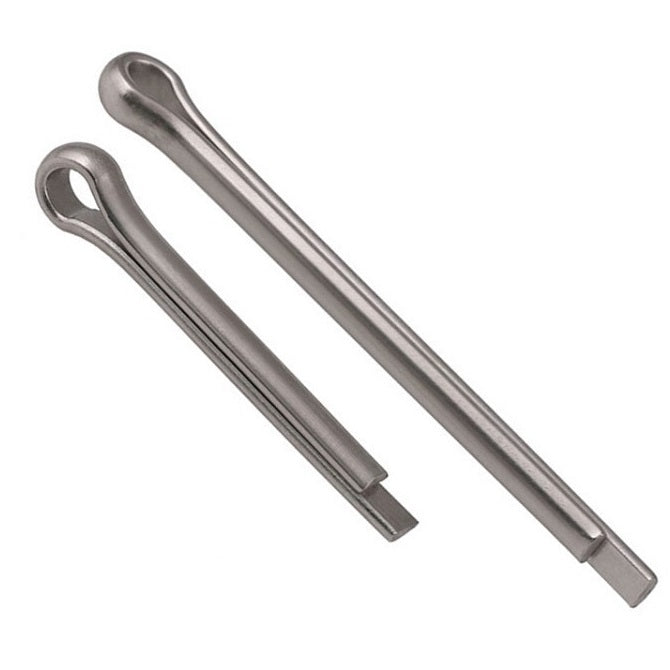

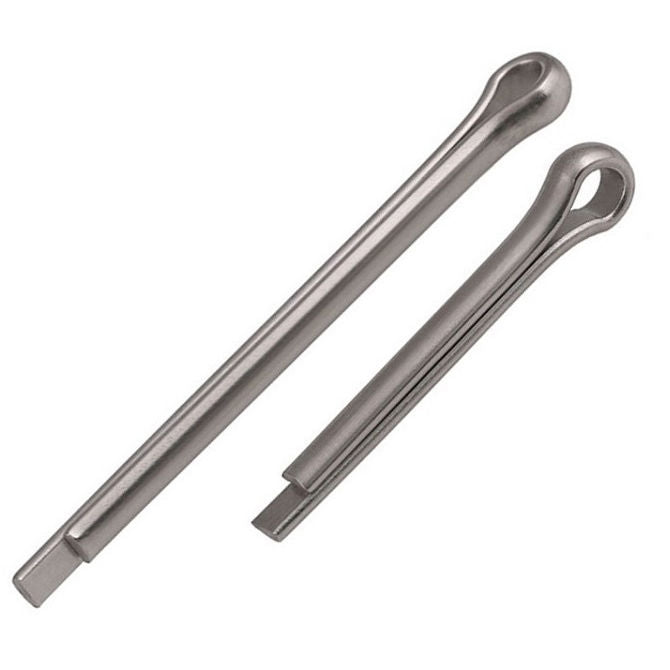

Pins - Split - Stainless SteelStainless Steel Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
- Maximum Hole Diameter
:
4.0
mm
(Equiv. 0.157 in.) - Nom. Pin Length (L)
50.0
mm
(Equiv. 1.969 in.) - Nom. Pin Diameter (D)
3.6
mm
(Equiv. 0.142 in.) - Nom. Overall Length 60 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 154450
