PLIT-040-080-100-39-KP-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Steel - Standard

Standard Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M8 Fine (8x1mm)
    • Overall Length (A) 38.5 mm
      (Equiv. 1.516 in.)
    • Initial End Force 5.4 N
    • Final End Force 2.7 N
    • Tip Diameter (C) 4.0 mm
    • Tip Length (D) 4.0 mm
    • Hex Height (F) 6.0 mm
    • Knob Diameter (J) 18.0 mm
    • Hex Size (K) 10.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP509
      • KBP-509
      View full details

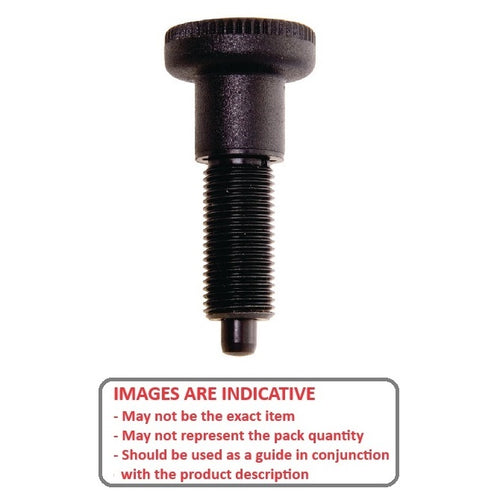

      PLIT-040-080-100-39-KP-CDiagramPLIT-040-080-100-39-KP-CImage
