4R-0040-0300-KPO - Datasheet
ExaktKey
Category Information

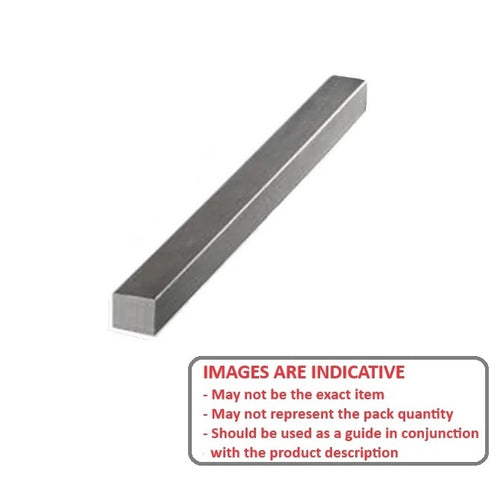

Keysteel Lengths - Square - Carbon SteelCarbon Steel Square Keysteel Lengths. Plain carbon steel key steel. Square steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data

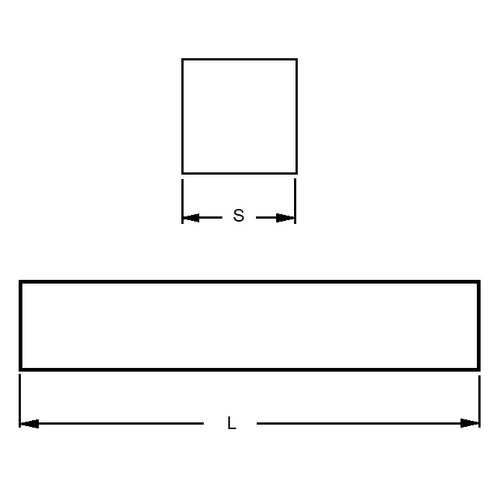

- Width (s1)
:
4.000
mm
+ 0.051 / - 0.00
(Equiv. 0.157 in.) - Height (s2)
4.000
mm
+ 0.051 / - 0.00
(Equiv. 0.157 in.) - Length (L)
300
mm
+/- 3.2
(Equiv. 11.811 in.) - Finish Plain
- Tolerance Type Oversized
- Blue End Colour Code
- Material Carbon Steel 1045
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3501560156-12
- NoCor 350404-305
- 98830A125
- 350404305
