RP040-0240-4 - Datasheet
MBA
Category Information

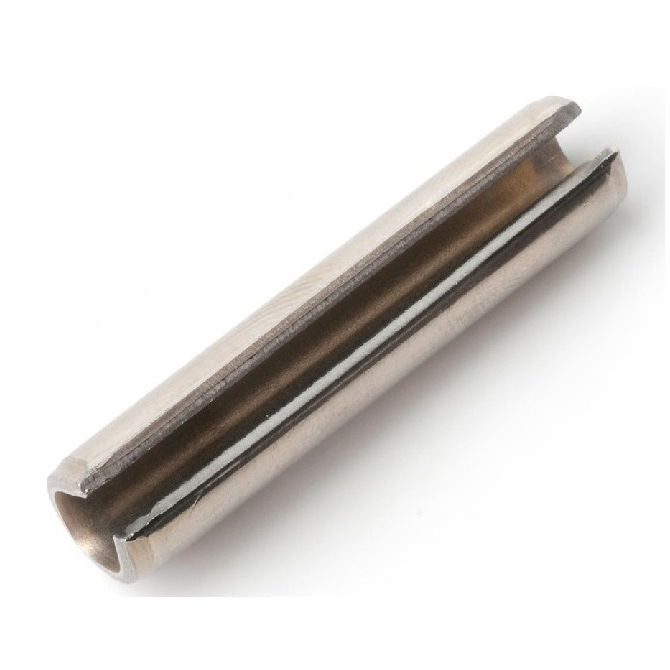

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
4.00
mm
(Equiv. 0.157 in.) - Length (L)
24.00
mm
(Equiv. 0.945 in.) - Free Diameter
4.40
mm
(Equiv. 0.173 in.) - Thickness (S) 0.80 mm
- Chamfer Length (cL) 0.65-0.85 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A511
- NoCor SPMS-040-024-304SS
- SRP424
- SRP4-24
- SPMS040024304SS
