PLIT-040-080-100-43-KPU-S3F - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - No Collar - Stainless - Standard

Standard Stainless No Collar Indexing Pull Knob Plungers. This is the main category in this series

    Product Data

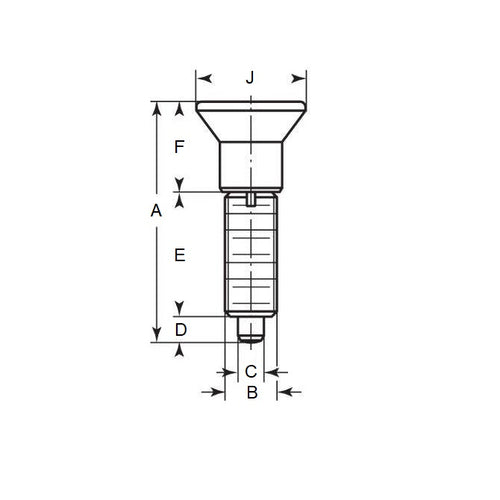

    • Thread (B) : M8 Fine (8x1mm)
    • Overall Length (A) 43.0 mm
      (Equiv. 1.693 in.)
    • Initial End Force 2.7 N
    • Final End Force 5.4 N
    • Tip Diameter (C) 4.0 mm
    • Tip Length (D) 4.0 mm
    • Hex Height (F) 18.0
    • Knob Diameter (J) 18.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP654
      • KBP-654
      View full details

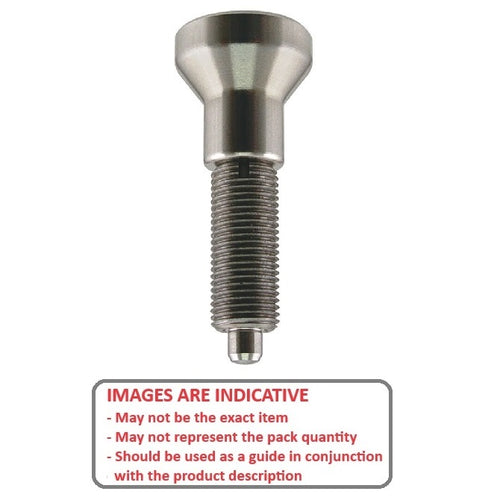

      PLIT-040-080-100-43-KPU-S3FDiagramPLIT-040-080-100-43-KPU-S3FImage
