PSP-040-014H-C - Datasheet
MBA
Category Information

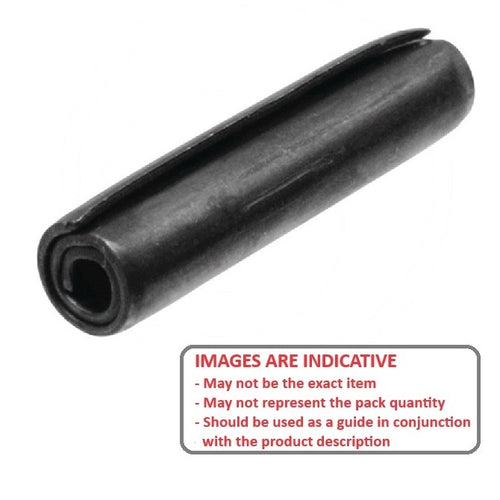

Pins - Coiled - Steel - Heavy DutyHeavy Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8748 Heavy Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
4.00
mm
(Equiv. 0.157 in.) - Length
14.00
mm
+/- 0.50
(Equiv. 0.551 in.) - Drill Size
4.00 - 4.12
mm
(Equiv. 0.157 in.) - Loose Diameter 4.15 - 4.30 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 14 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPCM-040-014H
- SPCM040014H
