RGEAM1.0-500-Z - Datasheet
MBA
Category Information

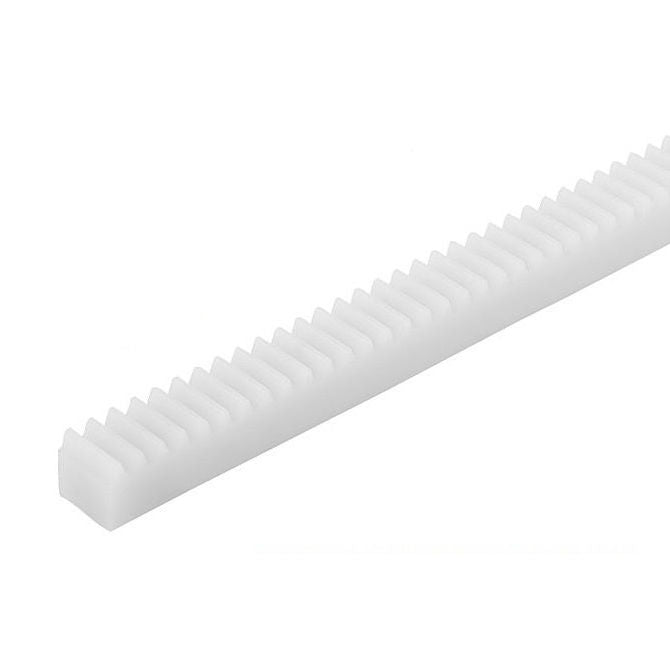

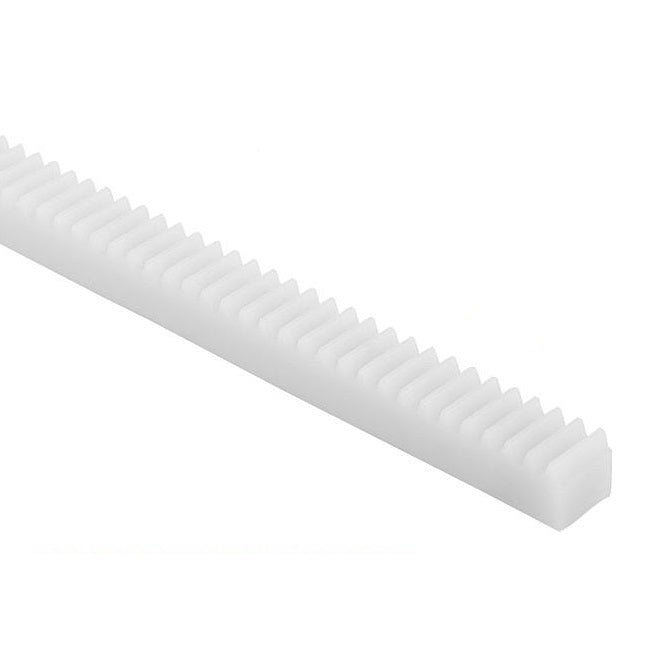

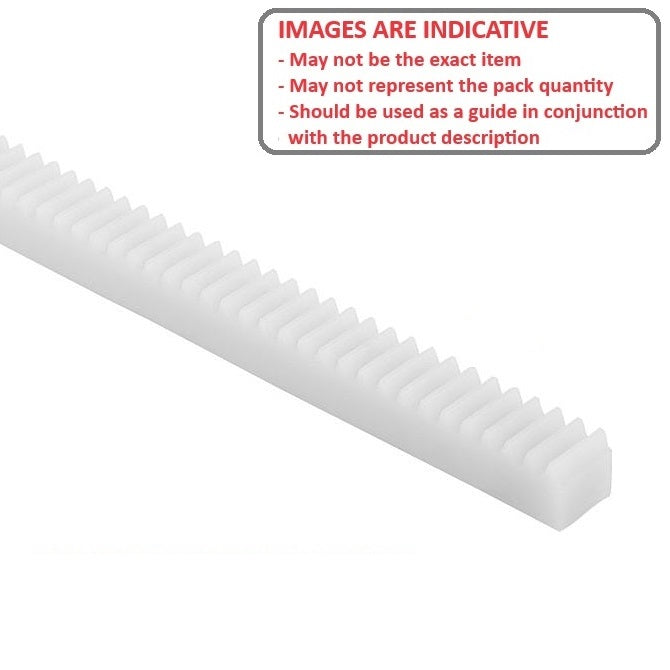

Gears - Rack - Metric - Module 1 - PlasticPlastic Module 1 Metric Rack Gears. 20 Degree Pressure Angle. Acetal and Nylon
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
499.510
mm
(Equiv. 19.666 in.) - Face Width (fw)
10.000
mm
(Equiv. 0.394 in.) - Height (h)
12.000
mm
(Equiv. 0.472 in.) - Pitch Type Module 1
- Pressure Angle 20 °
- Info Side Counterbored
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Misumi RGEAM1.0-500-Z
- RGEAM10500Z
