MMI-0499-M - Datasheet
MBA
Category Information

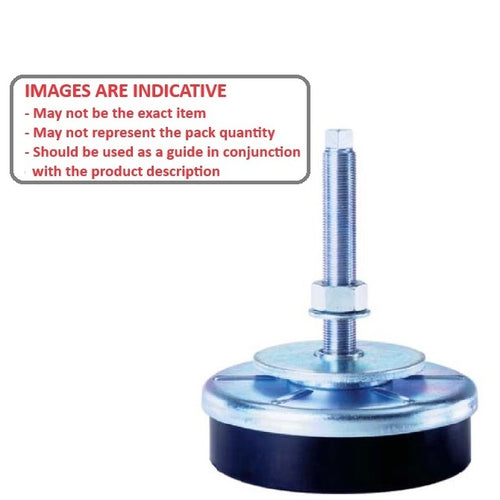

Mounts - Machinery Industrial - Medium DutyMedium Duty Machinery Industrial Mounts. High strength machined components. Rapid installation and leveling. 80% vibration reduction. Vertical and horizontal isolation.
- For milling mchines, presses, injection molding, packaging machines.
- Industrial machine mount designed with high strength construction for reduction of both shock and vibration.
- Prevents vibration from affecting other machines and protects mounted equipment from external vibration effects.
- Provides precision leveling with large support plate and meets OSHA standards by preventing machinery walking.
Product Data
- Load Capacity : 498.9 Kg

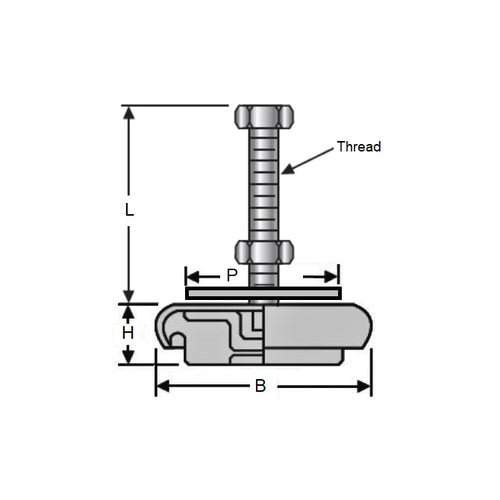

- Base Diameter
80.010
mm
(Equiv. 3.15 in.) - Overall Length
38.100
mm
(Equiv. 1.5 in.) - Height 128.524 mm
- Adjustment 11.938 mm
- Thread Size M12.0 x 1.25 (12.0mm)
- Thread Length 120.650 mm
- Non-Impact Machinery Load 498.951 Kg
- 125 Strokes per Min Load 199.580 Kg
- 180 Strokes per Min Load 136.078 Kg
- 200 Strokes per Min Load 117.934 Kg
- Injection Molding 176.901 Kg
- Material Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- RY27001
- RY-27001
