MSF-064C-CCC - Datasheet
MBA
Category Information

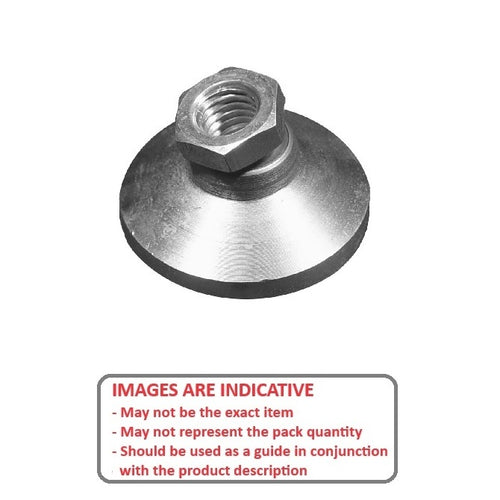

Mounts - Levelling Socket - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.8
mm
(Equiv. 0.701 in.) - Min. Thread Depth 7.9 mm
- Base Height (E) 3.80 mm
- Load Rating 490 Kg
- Steel
- Finish Clear Chromate
- Hex Flats (B) 12.70
- Material Clear Chromate
Product Compliance and Data
Additional Resources
Cross References
- 6103K75
- MSF0490064CCC
- LS16
- LS-16
