CS-4920-0635-45-M-S4 - Datasheet
MBA
Category Information

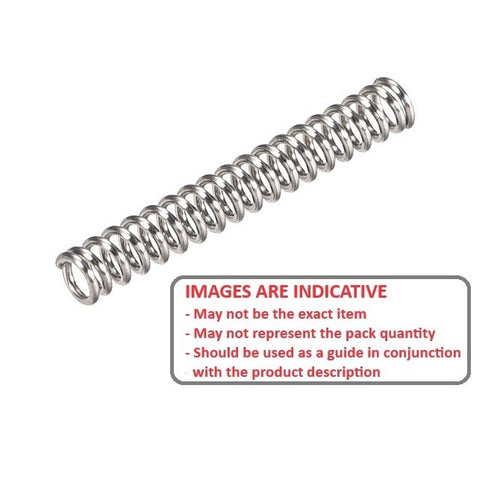

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
49.20
mm
+/- 1.40
(Equiv. 1.937 in.) - Free Length (L0)
63.5
mm
+/- 2.54
(Equiv. 2.5 in.) - Wire Diameter (d)
4.50
mm
+/- 0.0254
(Equiv. 0.177 in.) - Rate (P/f) 11.4 N/mm
- Solid Height (Sh) 26.770 mm
- Approx. ID 40.2 mm
- End Type Ground Flush
- Max Rod Dia. (A) 37.75 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
