B-030H-0049-0090-NFB - Datasheet
MBA
Category Information

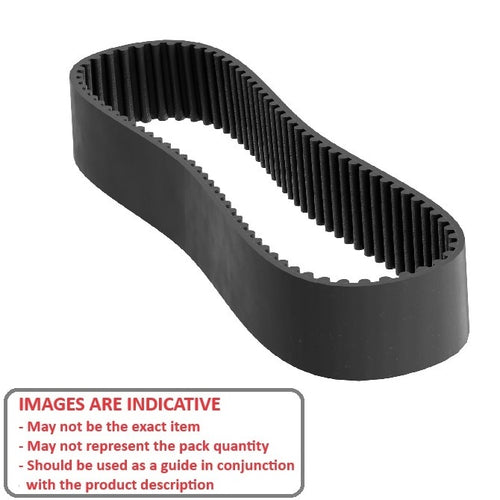

Belts - Timing 3.000mm Pitch - HTD - 9mm Wide - Single SidedSingle Sided 9mm Wide HTD Timing 3.000mm Pitch Belts. HTD Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

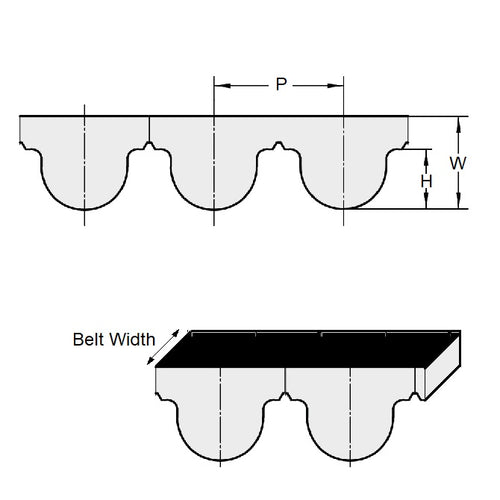

- Tooth Height (H) - 1.17mm
- Belt Height (W) - 2.41mm
- Tooth Length (T) - 1.78mm
- Pitch (P) - 3mm
Product Data
- Number of Teeth : 49
- Length
147
mm
(Equiv. 5.787 in.) - Width
9.0
mm
(Equiv. 0.354 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 1422 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 147-3M-09
- Misumi C-HTBN147H3M-90
- CHTBN147H3M90
- 1473M09
- A6R23M049090
